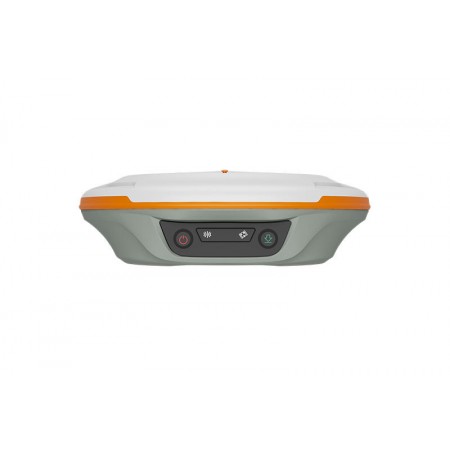

GPS Geodetik SinoGNSS COMNAV N2 GNSS Palm RTK
Slim-line design makes the N2 one of the most compact GNSS receiver: only 48mm and 0.67kg including battery Compared with a typical GNSS receiver, it is more than 35% thinner and 40% lighter, can be carried, used and operated more easily without fatigue. Lighter, Thinner, and Stronger - N2 is specifically designed for land survey, marine, precision agriculture, machine control, and GIS.
Features
01.1590 channels and 50+ satellites tracking capabilities
02.Tracking all running and planned constellations, including GPS, BDS-2, BDS-3, GLONASS, Galileo, QZSS, IRNSS and SBAS
03.Up to 15km work range with enhanced UHF
04.Up to 60°tilt with 2.5 cm accuracy
05.20+ hrs continuous work with 10000mAh batteries
06.Support NFC and Bluetooth connection
07.IP67 dust- and waterproof for harsh environments
3rd Generation IMU
By compensating for up to 60° tilt, N2 eliminates challenges associated with surveying concealed or unsafe points and maintains accuracy within 2.5cm. Also, being immune to magnetic disturbance increase reliability.
Easy Connection
With advanced NFC, N2 can be connected automatically with a single touch. Dual mode Bluetooth 5.0 allows users to connect at higher distance and low energy standards. Tedious matching is a thing of the past.
Enhanced UHF
Integrated UHF ranges from 410 to 470 MHz. Up to 15km long work range makes it work-efficient and energy-saving for field work. It can be used as either a base station or a rover in largely extended working scenarios.
Longer Battery Life
10000mAh Battery makes 20+ hours day&night work possible. QC2.0 helps N2 full-charged in 5 hours, dealing with the worry about power outage.
Specifications
Performance | Channels | 1590 |
GPS | L1C/A, L1C, L2P, L2C, L5 | |
| BDS | B1I, B2I, B3I,BIC,B2a,B2b | |
GLONASS | G1, G2, G3 | |
Galileo | E1, E5a, E5b, E6c, E5 AltBOC | |
QZSS | L1C/A, L2C, L5, L1C | |
| IRNSS | L5 | |
| SBAS | L1C/A | |
| Signal Recapture | ≤1s | |
| RTK Initialization Time | ＜10s | |
| Static and Fast Static | Horizontal 8mm+1ppm | |
| SBAS | 1 m 3D RMS | |
| Standalone | 1.5m 3D RMS | |
| Data Update Rate | 1Hz, 2Hz, 5Hz, 10Hz | |
| reliability | ≥99% | |
| Internal Memory | 8GB(default),16GB/32GB(optional) | |
| Tilt Survey | Up to 60°tilt with 2.5 cm accuracy | |
Physical | Dimension | 149±1mm(φ), 48±1mm(H) |
Weight | 670g including battery | |
Working Temperature | -30℃~+65℃ | |
Storage Temperature | -40℃~+85℃ | |
Humidity | 100% non-condensing | |
Waterproof and Dustproof | IP67 | |
Voltage | 5/9V | |
Power Consumption | RX mode≤1.8W, TX mode≤3.6W | |
Over Current Protection Voltage | 30V, VBUS 9.99V | |
| Charging Time | <5h(QC2.0) | |
| Battery life | ≥20h | |
Communications | Bluetooth | Bluetooth 5.0 Dual-Mode |
UHF Power Consumption | 0.5W, 1W, 2W adjustable | |
Air Baud Rate | 9600/19200 adjustable | |
| UHF Channel Space | Tx/Rx with full frequency range from 410-470MHz | |
4G modem | LTE-FDD: | |
Serial Port | Support serial communication | |
| USB | Type-C |
