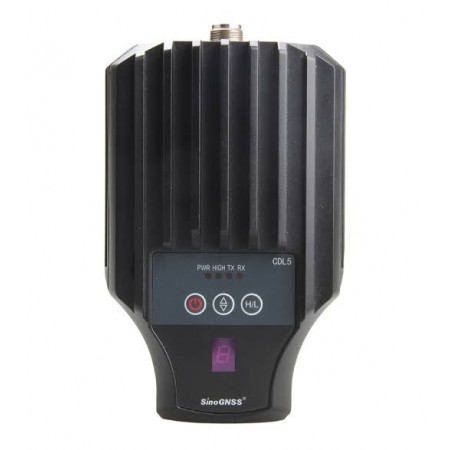

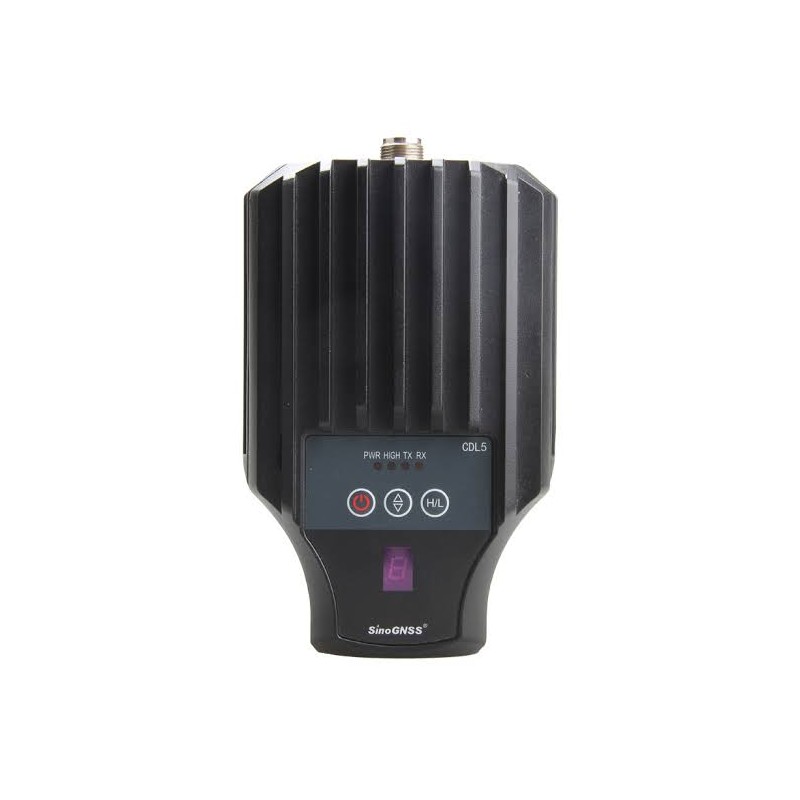

Sino GNSS DL5 UHF External Radio Comnav

General
Data Connector: 1 Serial Port (7 pin Lemo)
Baud rates 38400bps (4800 bps to
115200 bps optional)
User Interface: Power button (for powering receiver)
Channel button
Power selected button
Digital display
RF External: 50 Ohm, N-TYPE female
Power Connector: 2 pin Lemo

Electrical
Input voltage: 10V-14.5V DC
TX Current: 1-2A (2W)， 5-6A (30W)
RX Current: 200mA (0.75W)
Modem
Link Rate: 9600 bps/GMSK
19200 bps/GMSK
Link Protocols: Transparent, South, TT450, MAC
Forward Error Correction: Yes

Radio
Frequency Bands: 410 MHz – 470 MHz
Frequency Control: Channel Spacing 12.5 kHz
± 1.5 ppm Stability
RF Power Select: Low/High
RF transmit Output: 2W/5W/10W/15W/20W/30W
Adjacent Channel
Rejection Ratio:
Sensitivity: -117dBm BER 10-5
