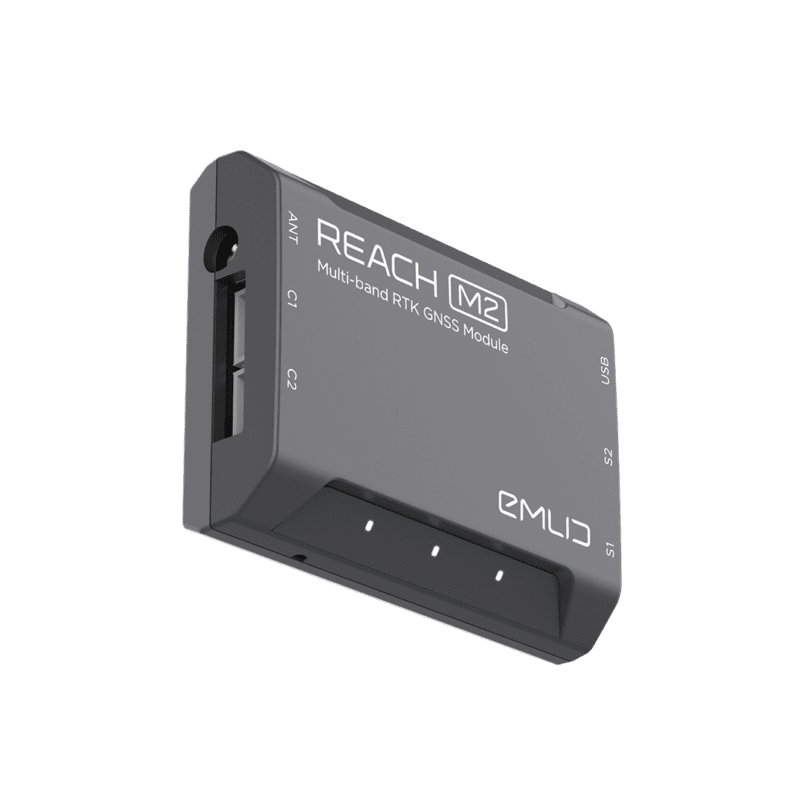

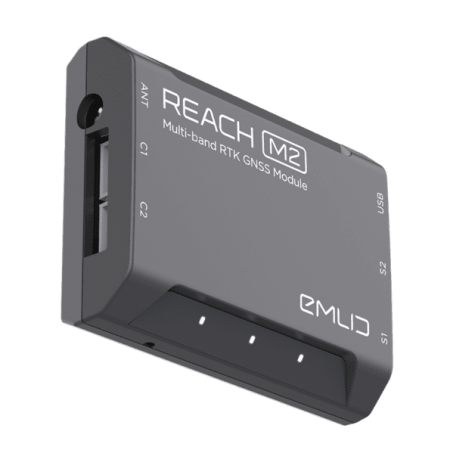

EMLID Reach M2 RTK GNSS modules for UAV mapping

Mechanical

• Dimensions 56.4 x 45.3 x 14.6 mm
• Weight 35 g
• Operating tº -20…+65 ºC

Electrical

• Input voltage on USB and JST GH 4.75 - 5.5 V
• Antenna DC bias 3.3 V
• Avg. consumption @5V 200 mA

Positioning

• Static horizontal 4 mm + 0.5 ppm
• Static vertical 8 mm + 1 ppm
• Kinematic horizontal 7 mm + 1 ppm
• Kinematic vertical 14 mm + 1 ppm

Connectivity

• LoRa radio (sold separately)
• Frequency range 868/915 MHz
• Distance Up to 8 km
• Wi-Fi 802.11b/g/n
• Bluetooth 4.0/2.1 EDR
• Ports USB, UART, Event

Data

• Corrections NTRIP, VRS, RTCM3
• Position output NMEA, LLH/XYZ
• Data logging RINEX with events
  with update rate up to 20 Hz*
  *coming with a software update,
  up to 10 Hz now
• Internal storage 16 GB

GNSS

• Signal tracked GPS/QZSS L1C/A, L2C
  GLONASS L1OF, L2OF
  BeiDou B1I, B2I
  Galileo E1-B/C, E5b
• Number of channels 184
• Update rates 10 Hz GNSS
• IMU 9DOF
