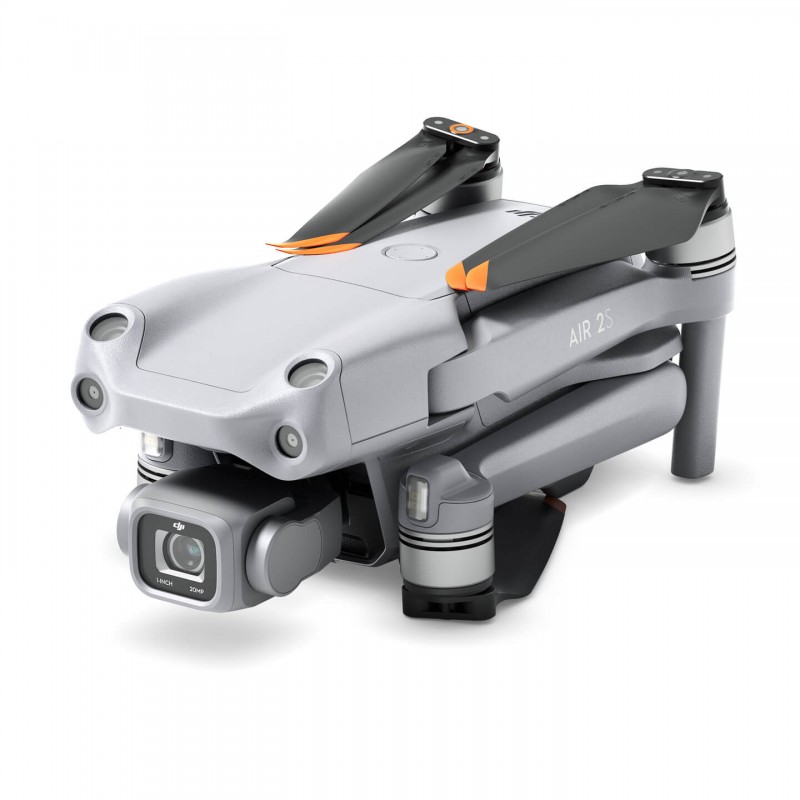

DJI AIR 2S

•

  1-inch CMOS Sensor

•

  MasterShots

•

  5.4K Video

•

  12km FHD
  Transmission ^{[1] [2]}

•

  Obstacle Sensing in 4 Directions

•

  ADS-B

Specs

Aircraft

• Takeoff Weight          595 g
• Dimensions

Folded:
180×97×77 mm (length×width×height)
Unfolded:
183×253×77 mm (length×width×height)

• Diagonal Length        302 mm
• Max Ascent Speed

6 m/s (S Mode)
6 m/s (N Mode)

• Max Descent Speed

6 m/s (S Mode)
6 m/s (N Mode)

• Max Service Ceiling Above Sea Level         5000 m
• Max Flight Time (no wind)                          31 minutes
• Max Hovering Time (no wind)                    30 minutes
• Max Flight Distance (no wind)                    18.5 km
• Max Flight Speed (near sea level, no wind)

19 m/s (S Mode)
15 m/s (N Mode)
5 m/s (C Mode)

• Max Wind Speed Resistance                        10.7 m/s
• Max Tilt Angle

35° (S Mode)
Front: 30°, Back: 20°, Left: 35°, Right: 35° (N Mode)

• Max Angular Velocity

250°/s (S Mode)
90°/s (N Mode)
60°/s (C Mode)

• Operating Temperature Range       0° to 40°C (32° to 104°F)
• Operating Frequency

2.4 GHz
5.8 GHz

• Transmission Power (EIRP)

2.4 GHz:
FCC: ≤30 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.8 GHz:
FCC: ≤30 dBm
CE: ≤14 dBm
SRRC: ≤29 dBm

• Hovering Accuracy Range

Vertical:
± 0.1 m (with vision positioning)
± 0.5 m (with GNSS positioning)
Horizontal:
± 0.1 m (with vision positioning)
± 1.5 m (with GNSS positioning)

• Propellers                   Quick release, low noise, folding
• Aircraft Arms            Foldable
• GNSS                          GPS+GLONASS+GALILEO
• Compass                     Single Compass
• IMU                            Single IMU
• Internal Storage        8 GB

Intelligent Flight Battery

• Capacity^[1]                       3750 mAh / 3500 mAh

• Voltage                       11.04 V / 11.55 V

• Max Charging Voltage         12.6 V / 13.2 V

• Battery Type             LiPo 3S

• Energy            41.4 Wh / 40.42 Wh

• Weight            198 g

• Charging Temperature Range        5° to 40°C (41° to 104°F)

• Max Charging Power           38 W

• Built-in Battery         N/A

Camera

• Sensor

1" CMOS
Effective Pixels: 20 MP; 2.4μm Pixel Size

• Lens

FOV: 88°
35 mm Format Equivalent: 22 mm
Aperture: f/2.8
Shooting Range: 0.6 m to ∞

• ISO Range

Video:
100-3200 (Auto)
100-6400 (Manual)
10-Bit Dlog-M Video:
100-800 (Auto)
100-1600 (Manual)
Photo:
100-3200 (Auto)
100-12800 (Manual)

• Still Image Size

20 MP
5472×3648 (3:2)
5472×3078 (16:9)

• Still Photography Modes

Single shot: 20 MP
Burst shooting: 20 MP (continuous burst)
Auto Exposure Bracketing (AEB): 20 MP, 3/5 bracketed frames at 0.7 EV bias
Timed: 20 MP, 2/3/5/7/10/15/20/30/60s
SmartPhoto (including HDR and HyperLight): 20 MP
HDR Panorama^[2]:
Vertical (3×1): 3328×8000 (width×height)
Wide-angle (3×3): 8000×6144 (width×height)
180° (3×7): 8192×3500 (width×height)
Sphere (3×8+1): 8192×4096 (width×height)
JPEG/DNG (RAW)

• Video Resolution

5.4K: 5472×3078 @ 24/25/30 fps
4K Ultra HD: 3840×2160 @ 24/25/30/48/50/60 fps
2.7K: 2688x1512 @ 24/25/30/48/50/60 fps
FHD: 1920×1080 @ 24/25/30/48/50/60/120 fps
MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)

• Max Video Bitrate                 150 Mbps

• Supported File System

FAT32/exFAT
Supports a microSD card with a capacity of up to 256 GB.

• Digital Zoom

Zoom recording is not available while recording 10-bit videos and 120fps videos.
4K/30fps:
4x;
2.7K/60fps:
4x;
2.7K/30fps:
6x;
1080p/60fps:
6x;
1080p/30fps:
8x

Gimbal

• Stabilization               3-axis (tilt, roll, pan)

• Mechanical Range

Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -100° to 100°

• Pan Axis                     Not Controllable

• Controllable Range   Tilt: -90° to 0°(default); -90° to 24° (extended)

• Max Controllable Speed (tilt)          100°/s

• Angular Vibration Range    ±0.01°

Sensing System

• Forward

Precision Measurement Range: 0.38-23.8 m
Effective Sensing Speed: ≤15 m/s
Field of View (FOV): 72° (horizontal), 58° (vertical)

• Backward

Precision Measurement Range: 0.37-23.4 m
Effective Sensing Speed: ≤12 m/s
Field of View (FOV): 57° (horizontal), 44° (vertical)

• Downward

ToF Measurement Range: 0.1-8 m
Hovering Range: 0.5-30 m
Vision Sensor Hovering Range: 0.5-60 m

• Left/Right                  N/A

• Upward

Precision Measurement Range: 0.34-28.6 m
Field of View (FOV): 63° (horizontal), 78° (vertical)

• Downward Auxiliary Light              Single LED

Video Transmission

• Transmission System

O3
2.4 GHz/5.8 GHz Auto-Switching (compatible with OcuSync 2.0)
4-antenna 2T4R

• Max Transmission Distance

12 km (FCC), 8 km (CE)
8 km (SRRC), 8 km (MIC)

• Live View Quality/Latency

Drone + Remote Controller: 1080p/30fps 12 Mbps 120 ms
Drone + DJI Smart Controller: 1080p/30fps 12Mbps 130 ms

• Max Transmission Bitrate

44 Mbps (download bitrate)
16 Mbps (live video bitrate)

• Operating Frequency

2.4 GHz
5.8 GHz

Remote Controller

• Multiple Controllers             N/A

• DJI Smart Controller           Supported

• Remote Controller Transmission System

When used with different aircraft hardware configurations, DJI RC-N1 Remote Controllers will automatically select the corresponding firmware version for updating and support the following transmission technologies enabled by the hardware performance of the linked aircraft models:
a. DJI Mini 2/ DJI Mavic Air 2: O2
b. DJI Air 2S: O3
c. DJI Mavic 3: O3+

• Battery Life               6 hours (4 hours when charging a mobile device)

• Supported Mobile Device Connectors        Lightning, Micro USB, USB-C

• Max Supported Mobile Device Size                        180×86×10 mm (length×width×height)

• Operating Temperature       0° to 40°C (32° to 104°F)

• Transmitter Power (EIRP)

2.4 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.8 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm

Charger

• Charging Input         100-240V, 50/60 Hz, 1.3 A

• Charging Output

Charging Port: 13.2 V⎓2.82 A
USB Port: 5 V⎓2 A

• Voltage           13.2 V

• Rated Power  38 W

Footnotes:

• 1. The two battery versions are basically the same in terms of battery life and propulsion performance.

• 2. To ensure the Panorama quality, the aircraft will crop the panoramic photos made out of multiple images. Therefore, the photo resolution may vary in different shooting scenarios.
