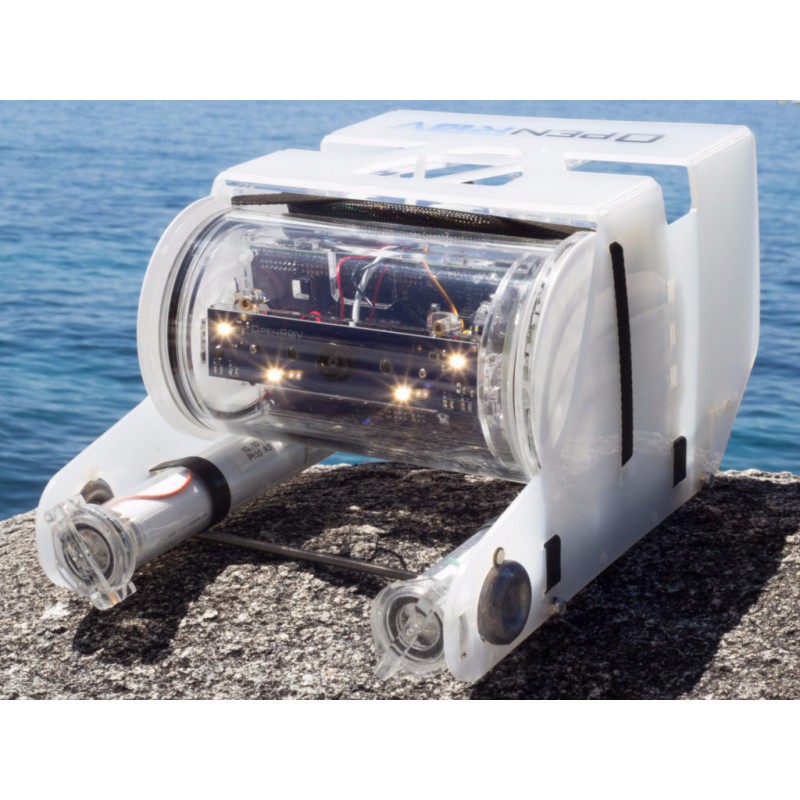

OpenRov v2.8 Underwater Drone

The OpenROV 2.80 Kit is a perfect introduction into the world of underwater robotics and exploration, but it's still a product for makers/developers. It's a blast to play with, but you should be ready to tinker with it. The kit involves soldering, gluing, and wiring of electronics.

- Specifications :

1. Physical specifications :
- Weight 2.6kg
- Dimensions 30cm long x 20cm wide x 15cm high
- Nominal battery life using rechargeable lithium batteries is 2-3 hours (depending on use)
2. Performance specifications :
- Maximum depth 100m (328ft)
- Maximum tether length 300m (100m tether provided)
- Maximum forward speed 2 knots
- LED brightness 200lm
- Temperature capability -10C to 50C
- Software controlled camera tilt (+/- 60 deg from center)
3. Instrumentation :
- HD Webcam (120 deg FOV) with audio
- Red Scaling lasers (parallel, 10 cm separation)
- Current and voltage protection with feedback to ensure proper system function
- External I2C bus with 3.3V power for external instrumentation
- 6 additional auxiliary wires for user-defined external instrumentation or devices. One power PWM channel and one servo control channel are preconfigured.

- Features :

1.Live HD video
It streams HD video to a surface laptop over an ultra-thin two-wire tether.
2. Neutrally buoyant and highly maneuverable
The compact and lightweight ROV maneuvers using a proven three thruster design. It can dive to 100m (328ft) depths, and the intuitive control system allows for smooth movements.
3. Easy-to-use web browser interface.
To operate the vehicle you do not need an internet connection or to download software on your computer.
4. Expandable
External I2C bus with 3.3V power for instrumentation, like our IMU/Depth Sensor. One power PWM channel, one servo control channel, and an auxiliary wire for easy integration of additional components including
