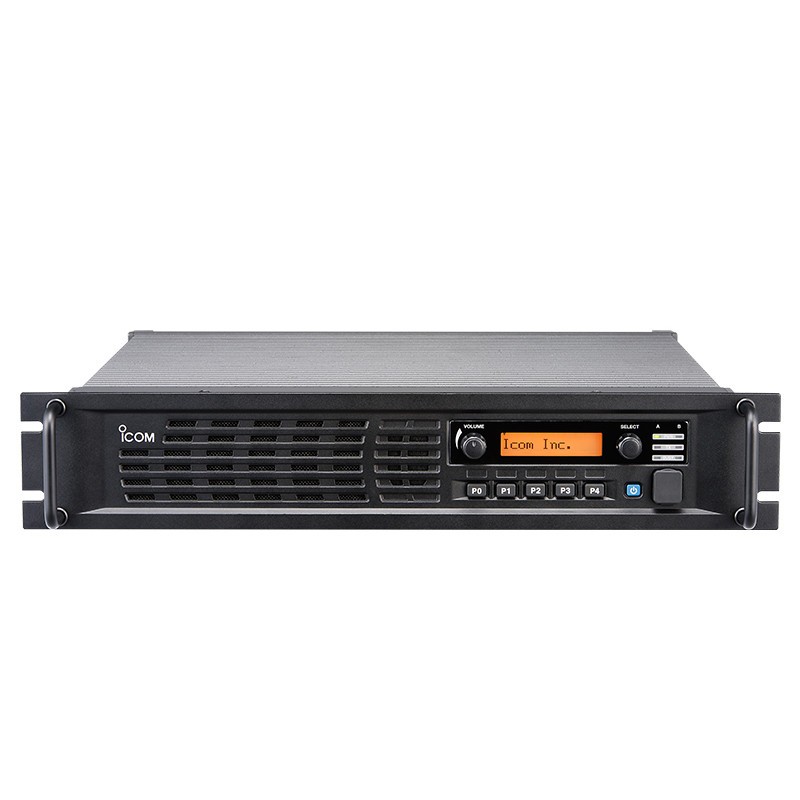

ICOM IC-FR5200H / IC-FR6200H
Repeater ICOM IC-FR5200H Heavy Duty 50 Watt dapat bekerja pada mode analog dan digital IDAS conventional and NXDN™ Type-D trunking* mode.
features
- CW ID transmission
- ±0.5ppm high frequency stability (Digital mode)
- 2U low profile for 19-inch rack mount
- Digital voice scrambler provides 15-bit key (about 32,000 codes)
- Built-in inversion voice scrambler (Analog mode)
- Built-in audio compander (Analog mode)
- PTT priority setting (Local Mic., external PTT or repeater operation)
- 5-Tone and DTMF encoder/decoder (Analog mode)
- Normal and priority scan
- Convenient key assign stickers supplied
- Beat cancel capability
- Low voltage alert (Analog mode)
General
IC-FR5200H | IC-FR6200H | ||
|---|---|---|---|
| Frequency coverage | 136–174MHz | 400–470, 450–512, 450–520, 350–400* MHz (* Non-FCC) | |
| Number of channels | Max. 32 channels | ||
| Channel spacing | 6.25/12.5/25kHz* | ||
| Type of emission | 16K0F3E, 11K0F3E/F7E/F7D/F7W, 4K00F1E/F1D/F3E | ||
| Frequency stability | ±0.5ppm | ||
| Antenna impedance | 50Ω (Type-N × 2) | ||
| Operating temperature range | −30°C to +60°C; −22°F to +140°F | ||
| Power supply voltage | 13.6V DC | ||
| Current drain (at 13.6V DC) | TX 50W | 11A | |
| RX Max. audio | 1.2A | ||
| Stand-by | 550mA/450mA typ. (with/without UC-FR5000 at LCD backlight OFF) | ||
| Dimensions (W×H×D) | 483×88×360 mm ; 19.02×3.46×14.17 in | ||
| Weight | 10kg ; 22lb (approx.) | ||
| * | 25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.Ask your dealer if you need 25kHz bandwidth. |
Transmitter
IC-FR5200H | IC-FR6200H | ||
|---|---|---|---|
| Output power 100% duty cycle | 50W (adjustable to 5W) 50W (at 20–35°C, 24 hours) | ||
| Max. frequency deviation | ±5.0kHz/±2.5kHz (W/N) | ||
| Spurious emissions | 80dB typ. | ||
| FM hum and noise | 52/49dB typ. (W/N) | 50/45dB typ. (W/N) | |
| Audio harmonic distortion | 1% typ. (40% deviation) | ||
| Digital FSK error | 5% Max. | ||
| Microphone impedance | 600Ω (8-pin modular) | ||
Receiver
IC-FR5200H | IC-FR6200H | ||
|---|---|---|---|
| Sensitivity | 12dB SINAD | 0.30μV typ. | 0.25μV typ. |
| 5% BER | 0.25μV typ. | 0.25μV typ. | |
| Adjacent channel selectivity | 85/56dB typ. (W/N) 68dB typ. (Digital) | 78/56dB typ. (W/N) 63dB typ. (Digital) | |
| Spurious response | 80dB (W/N) 75dBμV emf (Digital) | 80dB (W/N) 80dBμV emf (Digital) | |
| Intermodulation rejection | 78dB typ. (W/N) 75dBμV typ. emf (Digital) | 78dB typ. (W/N) 75dBμV typ. emf (Digital) | |
| Hum and noise ratio | 52/50/66dB typ. (W/N/D) | 50/45/55dB typ. (W/N/D) | |
| Audio output power | 4.0W typ. at 5% distortion with a 4Ω load | ||
| External speaker connector | 2-conductor 3.5 (d) mm (1/8″)/4Ω | ||
