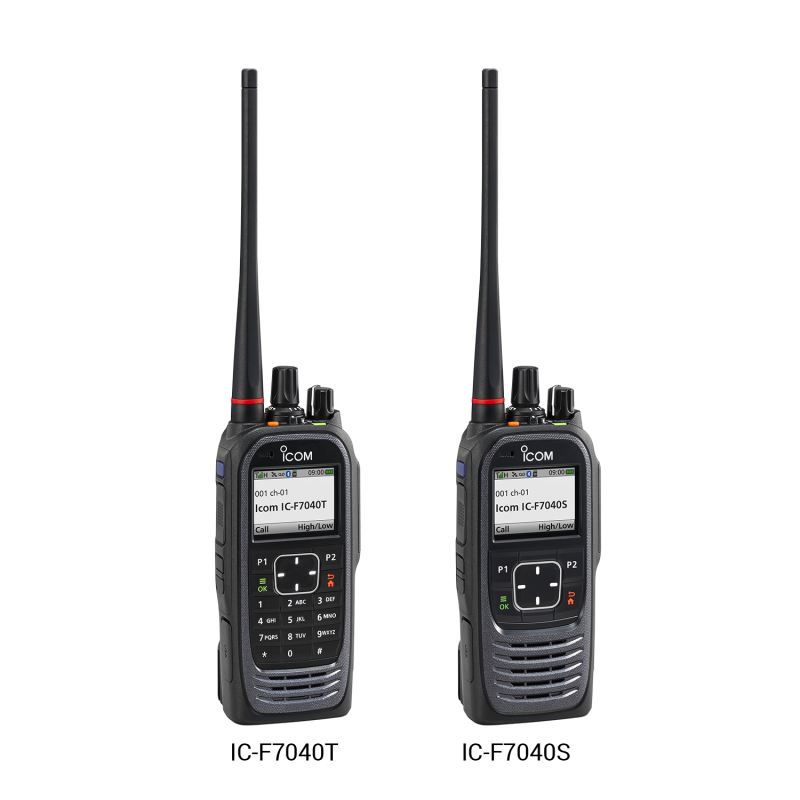

ICOM IC-F7040T / IC-F7040S
P25 Conventional and Trunking
Smallest and Lightest of Its Class
- P25 Phase 1 Conventional, Trunking* and Phase 2 Trunking* Capable
- DHS P25 CAP Certified (TIA-102) Compliant for Multiple Vendor Interoperability
- Optional FIPS Compliant AES Encryption Unit*
- P25 Voting Scan* (P25 Conventional Mode)
- Up to 1024 Channel Capacity with 128 Zones
- IP68 Waterproof Protection (1 m depth/1 hour)
- High Visibility and Readability with a Color LCD
- Icom's custom high power handling capacity speaker for 1300 mW of powerful audio
- Built-in Bluetooth®, Voice Recording and P25 Packet Data (GPS)* Functions
- Enhanced Dual-Rate AMBE+2™ Vocoder
General
IC-F7040T/S | ||
|---|---|---|
| Frequency coverage (* Depends on the transceiver version) | USA | 769–775 MHz (for RX/TX); 799–805 MHz( for TX only), 851–869 MHz (for RX/TX); 806–824 MHz(for TX only) |
| EXP | 764–776 MHz ( for RX/TX); 794–806 (for TX only), 851–870 (for RX/TX); 806–825 (for TX only) | |
| Number of channels | 1024 channels /128 zones | |
| Type of emission (* Depends on the transceiver version) | 16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 8K10F1E/F1D, 8K10F1W | |
| Power supply requirement | 7.5 V DC nominal | |
| Current drain (approximate) | Tx | 1.6 A |
| Rx | 620 mA (Max. audio w/Internal SP) 220 mA (Standby) | |
| Antenna impedance | 50 Ω | |
| Operating temperature range | −30 °C to +60 °C; −22 °F to +140 °F (Radio specifications) | |
| Dimensions (W × H × D, Projections not included) | 53.6 × 123.5 × 38.2 mm; 2.1 × 4.9 × 1.5 in (With BP-284) | |
| Weight (approximate) | 345 g, 12.2 oz (with BP-284, MB-133, FA-S100U) | |
Transmitter
IC-F7040T/S | |
|---|---|
| Output power (Hi) | 3 W |
| Maximum frequency deviation | ±5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz) |
| Frequency stability | ±1.0 ppm |
| Spurious emissions | 70 dB minimum |
| FM hum and noise | 55 dB typical |
| Audio harmonic distortion | 1.5% typical (AF 1kHz 40% deviation) |
| FSK error | 1% typical |
Receiver
IC-F7040T/S | ||
|---|---|---|
| Sensitivity | Analog (12 dB SINAD) | 0.25 μV typical |
| Digital (5% BER) | 0.25 μV typical | |
| Adjacent channel selectivity | Analog (wide / middle / Narrow) | 75 / 75 / 53 dB typical (TIA-603B) |
| Digital | 60 dB typical (TIA-102) | |
| Spurious response rejection | 70 dB minimum | |
| Intermodulation rejection | Analog | 70 dB typical |
| Digital | 70 dB typical | |
| Audio output power | Internal SP | 1300 mW typical (at 5% distortion with 8 Ω load) |
| External SP | 1000 mW typical (at 5% distortion with 8 Ω load) | |
