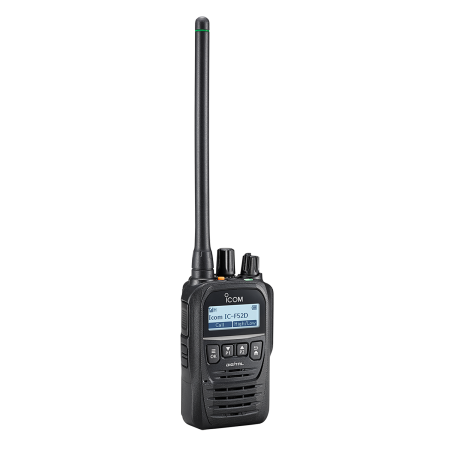

ICOM IC-F52D IC-F62D

order ke wa

Baru

VHF AND UHF DIGITAL TRANSCEIVERS

IC-F52D
IC-F62D

Series

A New Legacy: Slimmer, Smaller and Infinitely Better

sold

Produk ini telah habis stok

Small, Light and Feature Packed

Multiple Operating Modes

  • Analog FM
  • NXDN™/dPMR™ conventional
  • Upgradable to NXDN™ Type-D trunking
  • Upgradable to dPMR™ Mode 3 trunking*

* Not available in all regions.

Full Dot-Matrix Display, Rotary Channel and Volume Knob for Simple Every-day Operation

Built-in Bluetooth®, Voice Recording, Active Noise Cancelling Functions*

* Version without Bluetooth® also available. Ask your Dealer for details.

Motion/Stationary Detection, Man Down and Lone Worker Functions

OTAP (Over-the-Air Programming) Function Easily Reconfigures In-the-Field Radios

CS-OTPM1

Intelligent Battery Management Helps to Extend the Battery Life

General Features

  • 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
  • 512 CH / 128 Zones
  • 14 character dot-matrix display with status icons
  • Improved user interface
  • Programmable functions and menu items in a language other than English (For example French, Spanish, German, Russian and Turkish)
  • Backlit LCD and buttons
  • Continuous rotary knob and ON/OFF volume knob
  • 1300 mW loud and intelligible internal speaker audio
  • MIL-STD-810 G shock, vibration, temperature and more
  • IP67/66/55/54 waterproof & dust-tight protection
  • 36.5 mm (1.4 inch) slim dimensions (with BP-294 battery pack)
  • Intelligent battery information
  • License key upgrade (trunking)

Operating Mode

  • NXDN or dPMR mode 1/2 conventional
  • NXDN or dPMR multi-site conventional over IP network
  • NXDN type-D single/multi-site trunking  (License key, ISL-UGMTR required)
  • dPMR mode 3 trunking  (License key, ISL-UGMD3 required. Not available in all regions.)
  • 12.5 kHz digital mode (NXDN conventional)
  • Analog mode
  • Analog/digital mixed operation

Digital Functions (Voice and Data)

  • AMBE+2™ vocoder
  • Over-the-Air Programming (OTAP) function  (OTAP manager,  CS-OTPM1 required)
  • Over-the-Air Alias (OAA) sends own name with a call
  • Over-the-Air Update (OTAU) changes the repeater channel data and site code over the air (NXDN type-D trunking)
  • Direct mode communication
  • Individual, group and all call
  • Late entry for group call
  • Status call and polling
  • Short data messages
  • Call alert (NXDN)
  • Transparent data mode

Analog Functions

  • CTCSS and DTCS tone
  • 2-Tone and 5-Tone
  • MDC functions (Depending on version)
  • BIIS 1200 (MSK)
  • LTR™ trunking (Depending on version)
  • DTMF autodial

Security and Safety

  • Digital voice scrambler (Low level encryption)
  • Analog voice scrambler (Inversion)
  • Power ON password
  • Tactical group temporarily reconfigures user talkgroups
  • Radio stun/revive/kill
  • Remote monitor (NXDN)/Ambience listening (dPMR)
  • Emergency key for emergency call
  • Man down function
  • Lone worker function
  • Motion/stationary detection

Scan Functions

  • Priority scan
  • Voting scan for site roaming

Voice/Audio Functions

  • Voice announcement (Channel number and zone)
  • VOX function for hands-free operation
  • Voice recording/playback (Up to 8 minutes)
  • TX/RX active noise canceller
  • TX/RX audio equalizer
  • Audio compander (Analog mode)

Hardware

  • Programmable vibration alert
  • Built-in Bluetooth® for wireless audio and data
  • Variety of optional audio accessories including speaker-microphones, headsets and earphones
  • 14-pin accessory connector
  • Wireless radio programming over Bluetooth®

General

IC-F52DIC-F62D
Frequency coverage*
(* Depending on version)		136–174 MHz(NXDN Version)
350–400, 400–470,
450–512, 450–520 MHz

(dPMR Version)
400–470 MHz
Number of channels512 channels /128 zones
Type of emission*
(* Depending on version)		(NXDN Version)
16K0F3E*, 14K0F3E,
11K0F3E, 8K50F3E,
8K30F1E/D, 4K00F1E/D

(dPMR Version)
16K0F3E*, 14K0F3E,
8K50F3E, 4K00F1E/D

* 25 kHz bandwidth is no longer available for FCC Part 90
licensees for USA versions.
Power supply requirement7.5 V DC nominal
Current drain (approx.)Tx1.8 A
Rx500 mA /170 mA
(Max. audio (internal SP)/Standby)
Antenna impedance50 Ω
Operating temperature range−30 °C to +60 °C;
−22 °F to +140 °F
(Radio specifications)
Dimensions
(W × H × D;
Projections not included)		56 × 91.5 × 36.5 mm; 2.2 × 3.6 × 1.4 in
(With BP-294)
Weight (approx.)125 g; 4.4 oz (main unit)
270 g; 9.5 oz (BP-294, MBB-3)

Transmitter

IC-F52DIC-F62D
Output power (Hi, L2, L1)5 W, 2 W, 1 W
Frequency stability±1.0 ppm
Spurious emissions80 dB typ. (USA)
0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)
FM Hum and noise57 dB typ. (@25 kHz),
55 dB typ. (@12.5 kHz)
(USA)		57 dB typ. (@25 kHz),
56 dB typ. (@12.5 kHz)
(USA)
Audio harmonic distortion0.4% typ. (AF 1 kHz 40% deviation)
FSK error1% typ. (@DVN, DN)

Receiver

IC-F52DIC-F62D
SensitivityAnalog
(12 dB SINAD)		0.23 μV typ.
Analog
(20 dB SINAD)		−4.0 dBμV emf typ.
(@25 kHz),
−1.4 dBμV emf typ.
(@12.5 kHz)		−4.0 dBμV emf typ.
(@25 kHz),
−1.1 dBμV emf typ.
(@12.5 kHz)
Digital
(1% BER)		−5.0 dBμV emf typ.
(0.28 μV typ. ) (@DVN),
−3.0 dBμV emf typ.
(0.35 μV typ. ) (@DN)		−4.0 dBμV emf typ.
(0.32 μV typ. ) (@DVN),
−3.0 dBμV emf typ.
(0.35 μV typ. ) (@DN)
Adjacent
channel		Analog79 dB typ. (@25/20 kHz),
77 dB typ. (@12.5 kHz)		76 dB typ. (@25/20 kHz),
73 dB typ. (@12.5 kHz)
Digital70 dB typ. (@DVN),
72 dB typ. (@DN)		66 dB typ. (@DVN),
68 dB typ. (@DN)
Spurious response rejection76 dB typ.78 dB typ.
Intermodulation rejectionAnalog76 dB typ. (USA)
68 dB typ. (EUR)		74 dB typ. (USA)
68 dB typ. (EUR)
Digital73 dBμV emf typ. (@DVN)/−40 dBm typ. (@DN)
Audio output powerInternal SP1300 mW typ. (at 5% distortion, 8 Ω load)
External SP1000 mW typ. (at 5% distortion, 8 Ω load)
1300 mW typ. (at 5% distortion, 8 Ω load) with HM-222H*

Measurements made in accordance with TIA-603, EN300 086, EN301 166, EN300 113.
All stated specifications are subject to change without notice or obligation.
DVN: Digital Very Narrow (6.25 kHz), DN: Digital Narrow (12.5 kHz). DN is for NXDN version only.
*Depending on versions

Applicable U.S. Military Specifications & IP Rating

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard
 		MIL-810 G
MethodProcedure
Low Pressure500.5I, II
High Temperature501.5I, II
Low Temperature502.5I, II
Temperature Shock503.5I-C
Solar Radiation505.5I
Rain Blowing/Drip506.5I, III
Humidity507.5II
Salt Fog509.5–
Dust Blowing510.5I
Immersion512.5I
Vibration514.6I
Shock516.6I, IV

Also meets equivalent MIL-STD-810-C, -D -E and -F.

Applicable IP Rating

Ingress Protection Standard
Dust & WaterIP67/66/55/54

Some functions and options will be available in the future.

Supplied Accessories

  • Battery pack, BP-294
  • Belt clip, MBB-3

Please note that Battery charger and Antenna are must be purchased separatelly.

Catalogs / Brochures

Brochures NameSize
IC-F52D/F62D Digital Series2.07MB
Professional Radios10.20MB
Business Radio Solutions (European Edition)9.96MB
IDAS™ Solutions2.43MB
IDAS™ Digital Simulcast1.71MB

Instruction Manual / Guides

NameModel NameNote
DOC (DECLARATION OF CONFORMITY)IC-F52D (Built-in Bluetooth)
DICHIARAZIONE DI CONFORMITA UE(ITALIANO)IC-F52D (Built-in Bluetooth)
DOC (DECLARATION OF CONFORMITY)IC-F52D (Non-Bluetooth)
DICHIARAZIONE DI CONFORMITA UE(ITALIANO)IC-F52D (Non-Bluetooth)
INSTRUCTIONSIC-F52D/IC-F62D
ACCESSORIES GUIDEIC-F52D/IC-F62D
Precautions(French)IC-F52D/IC-F62D
DOC (DECLARATION OF CONFORMITY)IC-F62D (Built-in Bluetooth)
DICHIARAZIONE DI CONFORMITA UE(ITALIANO)IC-F62D (Built-in Bluetooth)
DOC (DECLARATION OF CONFORMITY)IC-F62D (Non-Bluetooth)
DICHIARAZIONE DI CONFORMITA UE(ITALIANO)IC-F62D (Non-Bluetooth)
