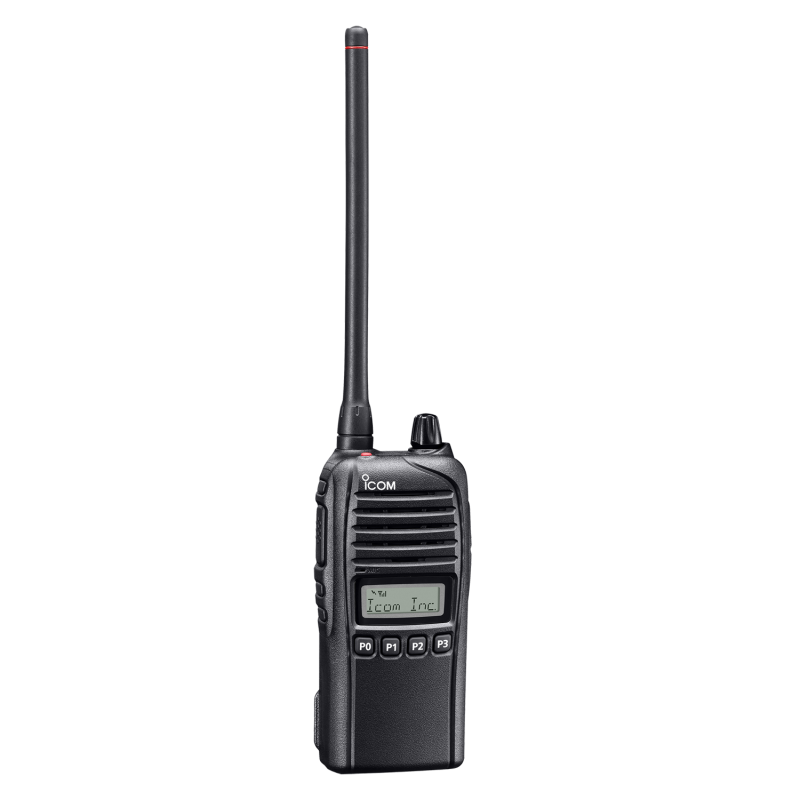

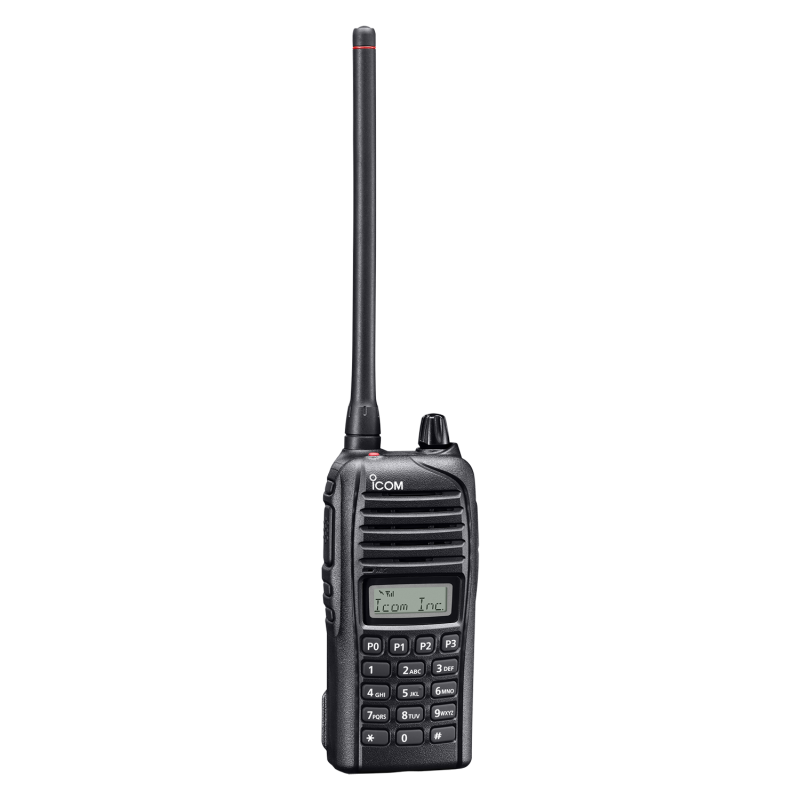

ICOM IC-F3230D IC-F4230D
VHF AND UHF TRANSCEIVERS
IC-F3230D
IC-F4230D
Series
IDAS™ Multi-site Trunking Radio with Superior Waterproof Protection
Produk ini telah habis stok
IDAS™ Digital Mode Operation
The IC-F3230D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site and single-site trunking and IDAS multi-site conventional.
IP67 Waterproof and Dust-Tight Protection
The IC-F3230D series provides outstanding protection against water and dust equivalent to IP67. The IC-F3230D series can withstand 1m depth of water for 30 minutes and its dust-tight construction prevents the ingress of powder dust, sand, mud and other objects.
Easy to Hear in Noisy Areas
The built-in bridge-tied load (BTL) amplifier delivers a powerful 1000mW* audio output from the large speaker. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
* Typical with internal speaker
Channel Announcement
When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.
8-Character LCD
An 8-character alphanumeric LCD with user-friendly icons shows a variety of information and operating status such as caller's name, received message, etc.
Roaming Scan
In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.
IDAS™ Digital Mode Features
- Up to 500 individual and up to 500 group ID aliases (Each for single-site/multi-site/conventional)
- PTT ID and ANI
- SDM (Short Data Message)
- Status
- RAN (Radio Access Number)
- Radio check (RX)
- Stun/kill/revive (RX)
- Call alert
- Remote monitor (RX)
- Emergency
- Digital voice scrambler
- ATB (All Trunks Busy) ring back
* TX: Transmit, RX: Receive
Other Features
- CTCSS/DTCS encoder/decoder*
- Up to 128 memory channel with 8 zones
- Optional HM-168LWP, waterproof speaker-mic
- Low battery alert
- 2-step power save
- Voting scan
- Time out timer
- Talk around function
- Lone worker function
- Surveillance function
- Forced narrow function*
* Analog mode only
Note: IC-F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)
General
| IC-F3230DT/DS | IC-F4230DT/DS | |||
|---|---|---|---|---|
| Frequency coverage | 136–174 MHz | 350–400 MHz | ||
| Number of channels | 128 channels/8 zones | |||
| Channel spacing (Varies according to version) | 25*/12.5/6.25 kHz | |||
| Type of emission | 16K0F3E*/11K0F3E/8K50F3E/4K00F1E/F1D | |||
| Current drain (approx.) | Tx | 1.3A (High) | ||
| Rx | 400mA/100mA (Max. audio/Standby) | |||
| Dimensions (W×H×D) (projections not included | 53×120×37 mm; 2.09× 4.72×1.46 in | |||
| Weight (approx.) | 340g; 12oz | |||
Transmitter
| IC-F3230DT/DS | IC-F4230DT/DS | |
|---|---|---|
| RF output power (at 7.5V DC) | 5W, 2W, 1W | 4W, 2W, 1W |
| Spurious emissions | 75dB typ. | |
| Frequency stability | ±1.0ppm | |
| Audio harmonic distortion | 1.0/2.0% typ. | |
| FSK error | 2% typ. | |
| FM Hum and Noise | 52/46dB typ. (W/N) | 46/40dB typ. (W/N) |
Receiver
| IC-F3230DT/DS | IC-F4230DT/DS | ||
|---|---|---|---|
| Sensitivity | (Analog 12dB SINAD) | 0.23μV typ. | 0.24μV typ. |
| (Digital 5% BER) | 0.18μV typ. | 0.18μV typ. | |
| Adjacent channel selectivity | 77/71/58dB typ. (W/N/D) | 74/67/58dB typ. (W/N/D) | |
| Spurious response rejection | 90dB typ. | 80dB typ. | |
| Intermodulation rejection | 75/75/70dB typ. (W/N/D) | 76/76/72dB typ. (W/N/D) | |
| Audio output power (at 5% distortion, 8Ω load) | 1000mW typ. (Internal SP) | ||
*25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions. Ask your dealer if you need 25kHz bandwidth.
Note: IC-F3230DT/F4230DT is NOT available in some countries. (Not available in the USA.)
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure Storage | 500.5 | I |
| Low Pressure Operation | 500.5 | II |
| High Temperature Storage | 501.5 | I |
| High Temperature Operation | 501.5 | II |
| Low Temperature Storage | 502.5 | I |
| Low Temperature Operation | 502.5 | II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing | 506.5 | I |
| Rain Drip | 506.5 | III |
| Humidity Induced | 507.5 | - |
| Salt Fog | 509.5 | - |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock Functional | 516.6 | I |
| Shock Transit Drop | 516.6 | IV |
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
| Ingress Protection Standards | |
|---|---|
| Dust & Water | IP67 (Dust-tight and waterproof protection) |
Measurements made in accordance with EIA/TIA-603.
All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Battery pack, BP-232WP
- Belt clip, MB-94R
- Antenna
- Desktop charger, BC-160*
- AC adapter, BC-123SA/SE*
* May differ or not supplied according to version
Catalogs / Brochures
| Brochures Name | Size |
|---|---|
| Professional Radios | 10.20MB |
| IDAS™ Solutions | 2.43MB |
Instruction Manual / Guides
| Name | Model Name | Note |
|---|---|---|
| Operating Guide for IDAS NXDN operation | IC-F3210D / F4210D / F3230D / F4230D / F5220D / F6220D series | |
| Instruction Manual | IC-F3230D series, IC-F4230D series | |
| Instructions | IC-F3230D series, IC-F4230D series | |
| Precautions (French) | IC-F3230D series, IC-F4230D series |
