Baru ICOM IC-F1100D IC-F2100D

ICOM IC-F1100D IC-F2100D

order ke wa

Baru

ICOM IC-F1100D IC-F2100D

VHF AND UHF DIGITAL TRANSCEIVERS

Big on Audio, Small on Size
1500 mW Class Leading Audio

VHF/Full keypadIC-F1100DT

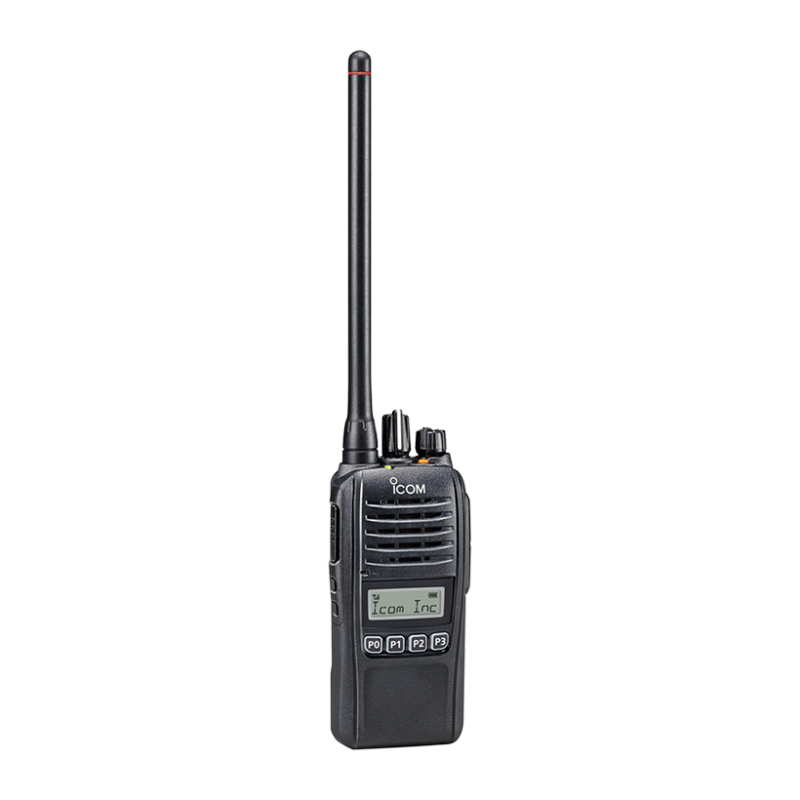

VHF/Simple keypadIC-F1100DS

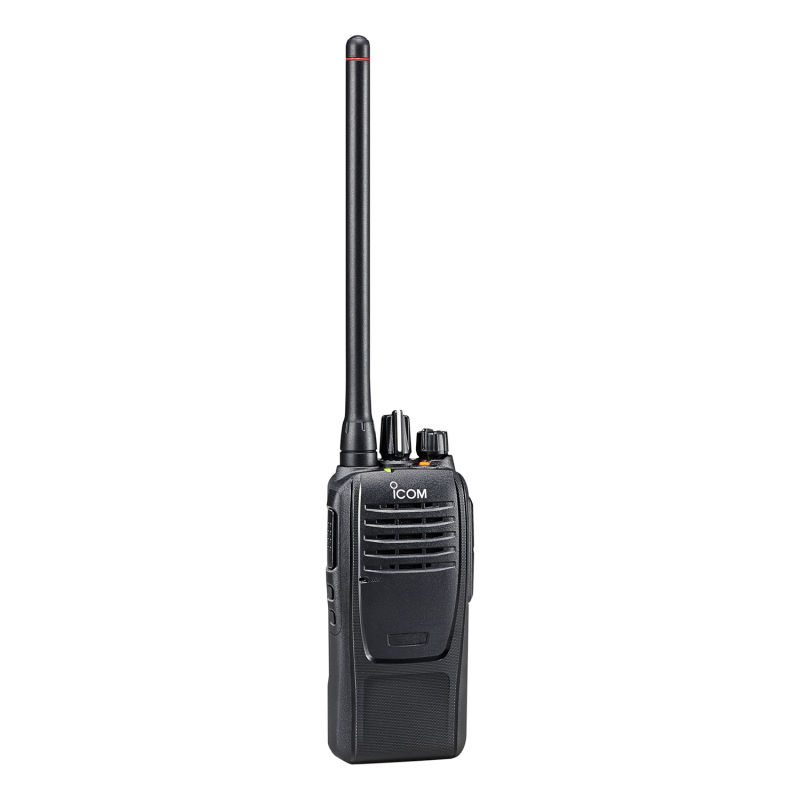

VHFIC-F1100D
UHF/Full keypadIC-F2100DT
UHF/Simple keypadIC-F2100DS
UHFIC-F2100D
sold

Produk ini telah habis stok

Icom’s Custom High Power Handling Capacity Speaker for 1500 mW of Powerful Audio

Optional 1500 mW Speaker-Microphone, HM-222HLWP*

* For the transceiver with a "U" mark on the serial number label.

Compact, Waterproof Durable Design (IP67/55/54 and MIL-STD-810-G)

Multiple Operating Modes*

  • Analog FM
  • NXDN™ /dPMR™ conventional
  • NXDN™ Type-D single-site trunking

*Available protocol differs depending on the version.

Over-the-Air Alias (OAA) Function Displays the Caller’s Name without Programming
(IC-F1100DT/DS and IC-F2100DT/DS only)

AquaQuake™ Function Clears Any Water Ingress That May Penetrate the Speaker Grill of the Unit

Motion/Stationary Detection, Man Down and Lone Worker Functions

Operating Time of Up To 18 Hours with the Supplied Battery (BP-280)

IDAS™ Conventional and Type-D Single-Site Trunking

General Features

  • 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
  • 128 Channels / 8 Zones (for LCD types)
  • 16 Channels (for non-display types)
  • Icom’s customized speaker offers a louder 1500 mW audio output
  • An engineered casing that amplifies and improves acoustic sound clarity
  • Compact (52.2 (W) × 111.8 (H) mm; 2.1 × 4.4 in) and lightweight
  • IP67/55/54 waterproof and dust-tight protection
  • Tested to 12 categories of MIL-STD-810-G environmental tests
  • AquaQuake™ – Expels water ingress from the speaker grill
  • DTMF autodial memories
  • 16-position rotary selector and ON/OFF volume knob
  • Programmable keys – Increase the number of programmable key assignments by using the “Shift key”
  • Operating times of up to 18 hours (with the supplied BP-280 battery pack)
  • Eight character alphanumeric display (for LCD types)
  • Three color LED

Operating Mode*

  • NXDN or dPMR Mode 1/Mode 2 conventional
  • NXDN or dPMR multi-site conventional over IP network
  • NXDN Type-D single-site trunking
  • Analog mode
  • Analog/digital mixed operation (conventional mode)

(* Available protocol differs depending on the version)

Digital Functions (Voice and Data)

  • AMBE+2™ vocoder
  • Over-the-Air Alias (OAA) displays the caller’s name without programming (for LCD types)
  • Individual, Group and All call
  • Late entry for Group call
  • Status call and Polling
  • Short data messages (for LCD types)
  • Call alert (NXDN)
  • Radio check (RX only) (NXDN)
  • GPS position capabilities (requires HM-171GPW)
  • Up to 500 ID numbers for IDAS or MDC 1200 signaling system can be saved in the Call List to show the alias name

Analog Functions

  • CTCSS and DTCS tone
  • 2-Tone and 5-Tone
  • MDC functions*; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX)
  • BIIS PTT ID transmission

* Depending on the version

Safety and Security

  • Digital voice scrambler (Low level encryption)
  • Radio Stun/Revive/Kill (RX only)
  • Remote monitor (NXDN)/ambience listening (dPMR)
  • Man down, Lone worker and Emergency call key capability
  • Motion and Stationary detection function
  • Surveillance function temporarily turns OFF the beep and LED indicator
  • Power ON password (for LCD types)

Scan Functions

  • Priority scan monitors one or two priority channels while scanning non-priority channels
  • Voting scan automatically selects the optimal repeater site
  • Mode dependent scan automatically changes the scan list, depending on the operating channel
  • Power ON scan function
  • Talk Back timer

Voice/Audio Functions

  • Channel announcement function
  • VOX function for hands-free operation
  • Siren sound for security alarm

General

IC-F1100DT/SIC-F1100DIC-F2100DT/SIC-F2100D
Frequency coverage*
(*Varies according to version)		136–174 MHz (NXDN/dPMR)400–470 MHz (NXDN/dPMR USA/EUR/EXP)
450–512 MHz (NXDN, USA)
450–520 MHz (NXDN, EXP)
Number of channels

128 channels/ 8 zones

16 channels128 channels/ 8 zones16 channels
Type of emission*
(*Depending onversion)

11K0F3E, 4K00F1E, 4K00F1D (USA)

16K0F3E, 14K0F3E, 11K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EXP)

16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E, 4K00F1D (EUR)

Power supply requirement

7.5V DC nominal

Current drain
(approx.)		Tx

1.3A

1.6 A (at 5 W)
1.4 A (at 4 W)

Rx

520 mA /110 mA
(Max. audio (internal SP)/Standby)

520 mA /110 mA
(Max. audio (internal SP)/Standby)

Antenna impedance

50Ω

Operating temperature range
(Radio specification)

–30°C to +60°C; –22°F to +140°F (Radio specification) (USA/EXP)

–25°C to +55°C (Radio specification) (EUR)

Dimensions
(W × H × D; Projections not included)

IC-F1100DS/D, IC-F2100DS/D:
52.2 × 111.8 × 29.4 mm; 2.1 × 4.4 × 1.2 in (With BP-280)

IC-F1100DT, IC-F2100DT:
52.2 × 111.8 × 34.1 mm; 2.1 × 4.4 × 1.3 in (With BP-280)

Weight (approx.)

IC-F1100D, IC-F2100D: 258 g, 9.1 oz (With BP-280 and MB-133)
IC-F1100DS, IC-F2100DS: 266 g, 9.4 oz (With BP-280 and MB-133)
IC-F1100DT, IC-F2100DT: 277 g, 9.8 oz (With BP-280 and MB-133)

Transmitter

IC-F1100DT/SIC-F1100DIC-F2100DT/SIC-F2100D
Output power
(Hi, L2, L1)

5 W, 2 W, 1 W

5 W, 2 W, 1 W

Maximum frequency deviation

± 5.0 kHz (25 kHz), ±4.0 kHz (20 kHz), ±2.5 kHz (12.5 kHz)

Spurious emissions

70 dB minimum (USA/EXP)

0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR/EXP)

Frequency stability

±2.0ppm

±1.0ppm

Audio harmonic distortion

0.8% typ. (25 kHz),
0.9% typical (20 kHz),
1.0% typical (12.5 kHz)
(at AF 1 kHz 40% deviation)

0.7% typ. (25 kHz),
0.9% typical (20 kHz),
1.0% typical (12.5 kHz)
(at AF 1 kHz 40% deviation)

FM Hum and Noise
(without CCITT filter)

46 dB typ. (25 kHz) (EXP),
44 dB typ. (12.5 kHz) (USA/EXP)

44 dB typical (12.5 kHz) (USA)

Residual modulations
(with CCITT filter)

51 dB typical (25 kHz),
49 dB typical (20 kHz),
45 dB typical (12.5 kHz) (EUR/EXP)

54 dB typical (25 kHz),
52 dB typical (20 kHz),
48 dB typical (12.5 kHz) (EUR/EXP)

FSK error

5% maximum

External microphone connector

3-conductor 2.5 (d) mm (1/10 in)/2.2 kΩ

Receiver

IC-F1100DT/SIC-F1100DIC-F2100DT/SIC-F2100D
SensitivityAnalog (at 12dB SINAD)

0.24 μV typical

0.24 μV typical

Analog (at 20dB SINAD)

–5 dBμV typ. emf (25/20 kHz),
–2 dBμV typ. emf (12.5 kHz)

–5 dBμV typ. emf (25/20 kHz),
–2 dBμV typ. emf (12.5 kHz)

Digital (at 5% BER)

–9 dBμV typical emf
(0.18 μV typical)

–8 dBμV typical emf
(0.20 μV typical)

Adjacent channel selectivity

77 dB typ. (25 kHz),
75 dB typ. (20 kHz),
67 dB typ. (12.5 kHz),
59 dB typ. (digital)

76 dB typ. (25 kHz),
75 dB typ. (20 kHz),
69 dB typ. (12.5 kHz),
58 dB typ. (digital)

Spurious response rejection

80 dB typical

Intermodulation rejectionDigital

71 dB typ. (USA/EXP),
74 dBμV emf typ. (EUR/EXP)

70 dB typ. (USA/EXP),
74 dBμV emf typ. (400–470 MHz, EUR/EXP)

Analog

76 dB typ. (25 kHz, EXP),
75 dB typ. (12.5 kHz, USA/EXP),
69 dB typ. (EUR/EXP)

77 dB typ. (25 kHz, EXP),
77 dB typ. (12.5 kHz, USA/EXP),
70 dB typ. (EUR/EXP)

Hum and noise(With CCITT filter)

48 dB typ. (25 kHz, EXP),
43 dB typ. (12.5 kHz, USA/EXP)

42 dB typical (12.5 kHz, USA)

(Without CCITT filter)

51 dB typ. (25 kHz),
49 dB typ. (20 kHz),
46 dB typ. (12.5 kHz)
(EUR/EXP)

50 dB typ. (25 kHz),
48 dB typ. (20 kHz),
45 dB typ. (12.5 kHz)
(EUR)

AF output power
(at 5% distortion 8Ω load)		Internal SP

1500 mW typical

External SP

450 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected*)

400 mW typical (single end)
1500 mW typical (BTL, HM-222HLWP connected*)

External speaker connector

2-conductor 3.5 (d) mm (1⁄8 in)/8 Ω

All stated specifi cations are subject to change without notice or obligation.
Measurements made in accordance with TIA-603 (USA/EXP) or EN 300-086 (EUR).
* For the transceiver with "U" make on the serial number label.




Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard
 		MIL-810 G
MethodProcedure
Low Pressure

500.5

I, II

High Temperature

501.5

I, II

Low Temperature

502.5

I, II

Temperature Shock

503.5

I-C

Solar Radiation

505.5

I

Rain Blowing/Drip

506.5

I, III

Humidity

507.5

II

Salt Fog

509.5

–

Dust Blowing

510.5

I

Immersion

512.5

I

Vibration

514.6

I

Shock

516.6

I, IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.


Ingress Protection Standard
Dust & Water

IP67 (Dust-tight and Immersion)
IP55/IP54 (Dust and Water jets/Water resistant)

All stated specifications are subject to change without notice or obligation.


Supplied Accessories

  • Battery pack, BP-280
  • Belt clip, MB-133
  • Antenna
  • Desktop charger, BC-213*
  • AC adapter*, BC-242 (or BC-123SE/SUK/SV)

* May differ, or not supplied, depending on the version.
