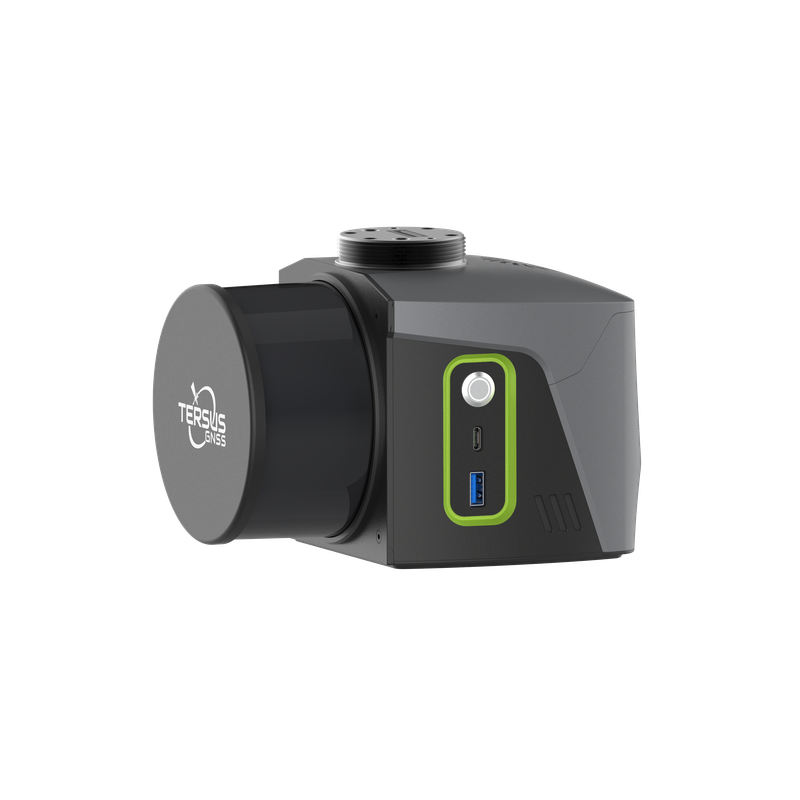

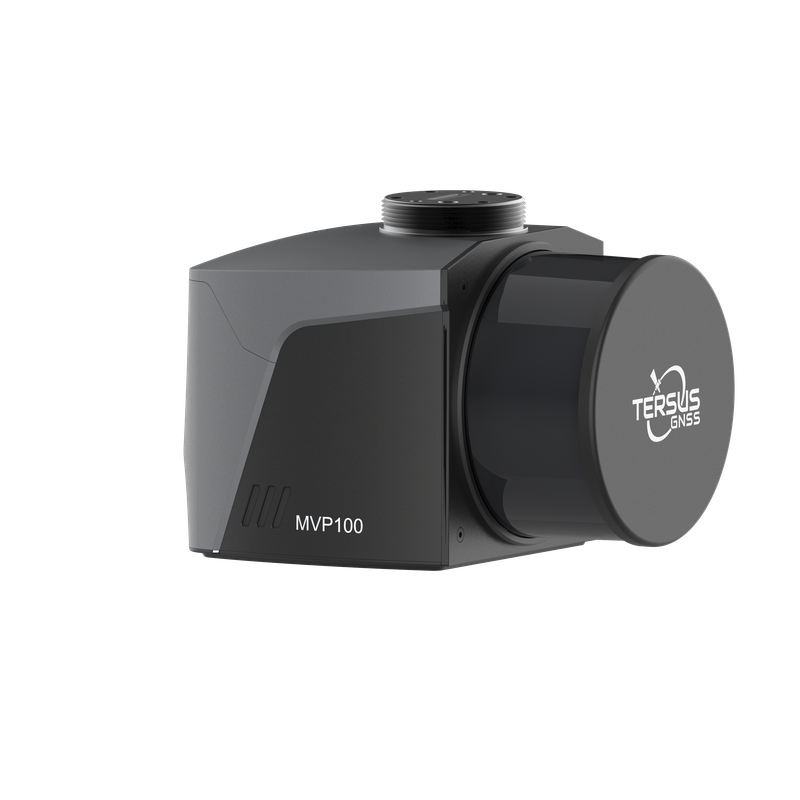

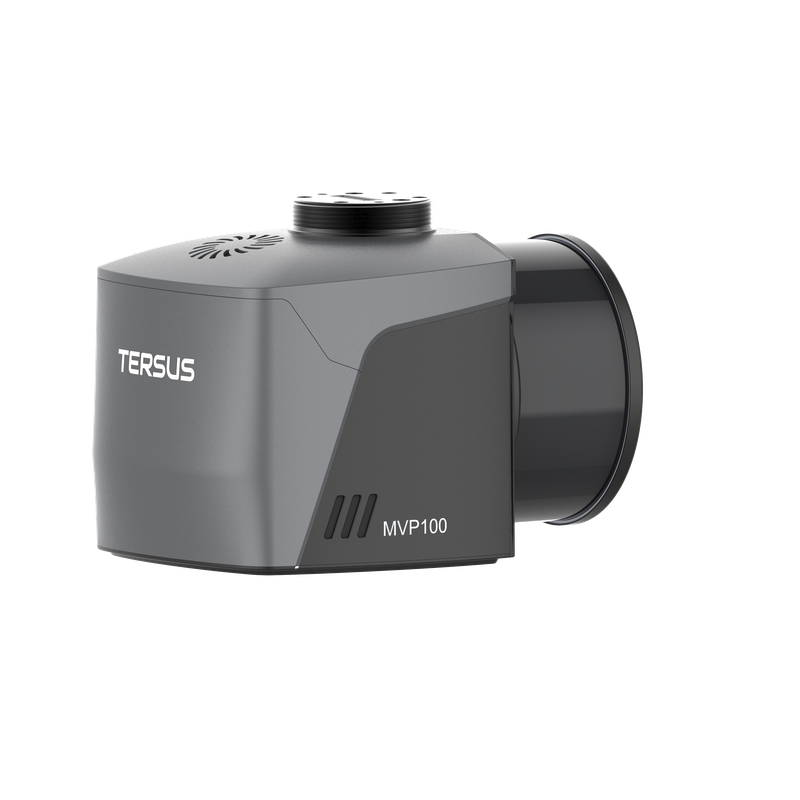

Tersus Lidar MVP100 Plus High-Precision Mobile Mapping System

Fitur

Sistem GNSS RTK canggih dengan IMU terintegrasi
Penyelarasan & fusi data multi-sumber secara otomatis
Akurasi posisi 5 mm (PPK), 10 mm (RTK)
Akurasi absolut point cloud 3–5 cm
Konsumsi daya rendah
Mendukung berbagai platform: drone dan kendaraan
Kompatibel dengan DJI SkyPort serta berbagai aksesori opsional (tersedia antarmuka koneksi langsung)
Software pemrosesan canggih dengan fitur one-click processing
Bobot ringan 1,45 kg

Drone yang Didukung
Kompatibel dengan model drone populer:

DJI M300 / M350
DJI M400
DJI M600

MVP100 Plus Technical Specifications
System Platform Weight 1.15kg Power Supply / Voltage 13-18V DC Power Consumption 20W Operating Temperature -10℃ ~ +50℃ Storage Temperature -30℃ ~ +60℃ Data Storage 256GB USB, up to 1TB Scanner Performance (Based on Hesai Pandar XT-32M2X) Laser Class Class 1 Eye Safe Wavelength 905nm Operating Principle TOF Measurement Range 0.5‒300 m Field of View (Horizontal) 360° Horizontal Resolution 0.09° (5Hz) 0.18° (10Hz) 0.36° (20Hz) Field of View (Vertical) 40.3°(-20.8°~ +19.5°) Vertical Resolution 1.3° Frame Rate 5Hz, 10Hz, 20Hz Returns Supported Single Return (Last, Strongest, First) Dual Return Triple Return Max. Effective Measurement Rate 640,000 pts/ sec (Single Return) 1,280,000 pts/ sec (Dual Returns) 1,920,000 pts/sec (Triple Returns) LiDAR Accuracy/ Precision 10mm / 5mm Point Cloud Accuarcy 3-5cm GNSS / IMU Performance Positioning Accuracy (RMS) 0.5cm+1ppm (PPK) GNSS Data Rate Up to 20Hz IMU Data Rate Up to 1000Hz INS Data Rate Up to 1000Hz Roll & Pitch Accuracy ＜0.01° Heading Accuracy ＜0.05° Camera Camera Kit 26 MP APS-C Effective Pixels 6252x4168 Sensor Size 23.5x15.7mm Focal Length 16mm FOV 83° GSD @ 100 m 2.3cm
