GNSS Performance

Signal Tracking

GPS

• L1 C/A
• L2C
• L2P
• L5

BeiDou (BDS)

• B1
• B2
• B3
• Mendukung BeiDou-3

GLONASS

• L1 C/A
• L2 C/A

Galileo

• E1
• E5a
• E5b

QZSS

• L1 C/A
• L2C
• L5

SBAS

Mendukung:

• WAAS
• EGNOS
• GAGAN
• SDCM
• MSAS

L-Band

Didukung

Jumlah Channel

• 1792 Channels

Visual & Laser Measurement Performance

Image Sampling Accuracy (Typical)

• 2 cm

Image Point Measurement Accuracy (Typical)

• 2 cm hingga 4 cm (2D)
• Pada jarak objek 2 m hingga 15 m

Laser Measurement Accuracy (RMS)

• 3 cm pada jarak 10 meter

Positioning Accuracy

Single Point Positioning (RMS)

• Horizontal: 1.5 m
• Vertikal: 2.5 m

DGPS Positioning (RMS)

• Horizontal: 0.25 m
• Vertikal: 0.5 m

High Precision Static (RMS)

• Horizontal: 2.5 mm + 0.1 ppm
• Vertikal: 3.5 mm + 0.4 ppm

Static & Fast Static (RMS)

• Horizontal: 2.5 mm + 0.5 ppm
• Vertikal: 5 mm + 0.5 ppm

Post Processed Kinematic (PPK)

• Horizontal: 2.5 mm + 1 ppm
• Vertikal: 5 mm + 1 ppm

Real Time Kinematic (RTK)

• Horizontal: 8 mm + 1 ppm
• Vertikal: 15 mm + 1 ppm

Network RTK (NRTK)

• Horizontal: 8 mm + 0.5 ppm
• Vertikal: 15 mm + 0.5 ppm

Initialization & Performance

Initialization Time (Typical)

• 4 detik

Initialization Reliability

• 99.9%

Time To First Fix (TTFF)

Cold Start

• < 30 detik

Warm Start

• < 5 detik

Re-acquisition

• < 1 detik

Timing Accuracy

• 20 ns RMS

Velocity Accuracy

• 0.03 m/s RMS

Tilt Compensation

IMU Tilt Compensation Accuracy

• ≤ 2 cm
• Hingga kemiringan 60°
• Tanpa batas sudut kemiringan operasional

Observation Accuracy

Zenith Direction

C/A Code

• 10 cm

P Code

• 10 cm

Carrier Phase

• 1 mm

TAP Service (Tersus Precise Point Positioning)

Positioning Accuracy (RMS)

• Horizontal: 15 mm
• Vertikal: 30 mm

Convergence Time

• 3 menit

Coverage

• Global

Signal Stability

• 99.99%

System & Data

Operating System

• Linux

Internal Storage

• 32 GB

Differential Data Formats

• CMR
• RTCM 2.x
• RTCM 3.x

Data Output

• RINEX
• NMEA-0183
• Tersus Binary

Data Update Rate

• Hingga 20 Hz

Communication

Cellular Network

• 4G LTE
• WCDMA
• GSM
• EDGE

Network Protocols

• NTRIP Client
• NTRIP Server
• TCP
• Tersus Caster Service (TCS)

Wi-Fi

• IEEE 802.11 a/b/g/n/ac

Bluetooth

• Bluetooth 5.0

Internal UHF Radio

RF Output Power

• 0.5 Watt
• 1 Watt

Frequency Range

• 410 MHz – 470 MHz

Operating Mode

• Half Duplex

Channel Spacing

• 12.5 kHz
• 25 kHz
• 250 kHz

Modulation

• CSS
• GMSK
• 4FSK

Air Baud Rate

• 4800 bps
• 9600 bps
• 19200 bps

Supported Radio Protocols

• LoRa
• TrimTalk450
• TrimMark3
• Transparent
• South
• Satel

Wired Communication

USB Interface

• USB Type-C
• OTG Support

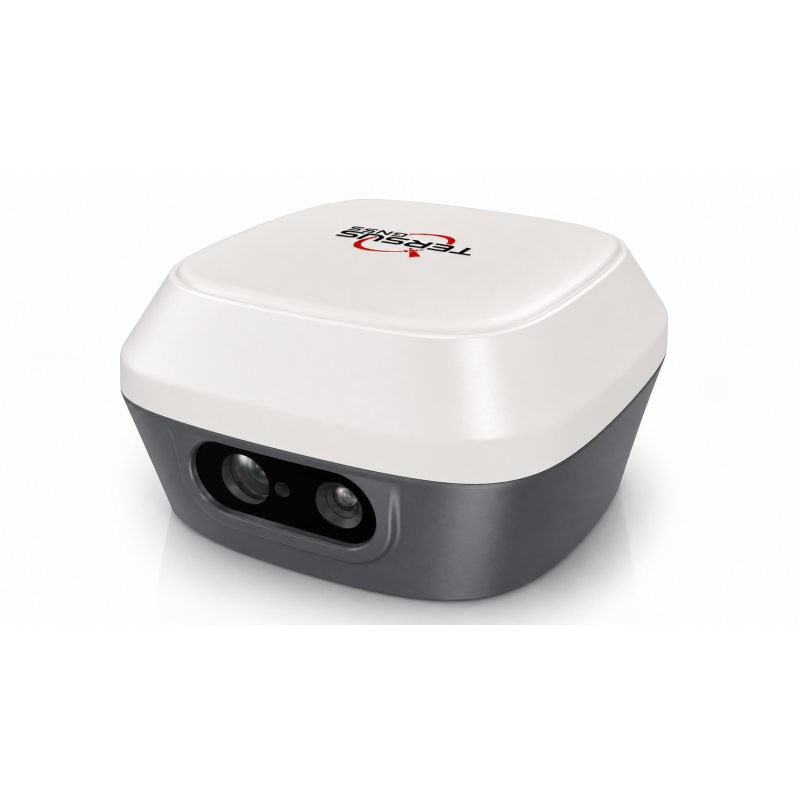

Camera Specifications

Front Camera

• 2.3 MP

Bottom Camera

• 2.0 MP

Laser Specifications

Measuring Range

• 0.05 m – 50 m

Laser Safety Class

• Class 3R

Distance Accuracy

• 8 mm

Measurement Frequency

• 5 Hz

Electrical Specifications

External Power Supply

• USB 5 V – 20 V

Internal Battery

• Lithium Battery
• 10,000 mAh
• 7.3 V

Charging Time

• 5 jam (10% – 90%)

Fast Charging

• Maksimum 15 W
• 5 V / 3 A

Charging Temperature

• +10°C hingga +45°C

Working Time

• Hingga 12 jam

Smart Battery

• Didukung

Electronic Bubble

• Didukung

User Interface

Buttons

• Tombol Power

LED Indicators

• Satellite Status
• Correction Data
• Solution Status
• Static Logging Status

Power Display

• Didukung

Physical Specifications

Dimensions

• Ø134 × 90 mm

Weight

• ± 1.05 kg

Operating Temperature

• -40°C hingga +70°C

Storage Temperature

• -55°C hingga +85°C

Relative Humidity

• 100% non-condensing

Waterproof & Dustproof

• IP68

Pole Drop Resistance

• Tahan jatuh dari ketinggian 2 meter ke permukaan beton

Warranty

• 1 Tahun
