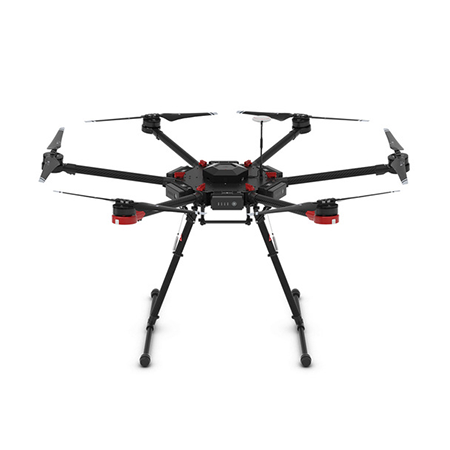

Drone DJI Matrice 600

Spesifikasi Drone DJI Matrice 600 :

Diagonal Wheelbase: 1133 mm
Aircraft Dimensions:
1668 mm x 1518 mm x 759 mm (Propellers, frame arms, and GPS mount unfolded) 640 mm x 582 mm x 623 mm (Frame arms and GPS mount folded)
Package Dimensions:    620 mm x 320 mm x 505 mm
Intelligent Flight Battery Quantity: 6
Weight (with six TB47S batteries): 9.1 kg
Weight (with six TB48S batteries): 9.6 kg
Max Takeoff Weight: 15.1 kg
PROPULSION SYSTEM
Motor Model: DJI 6010
Propeller Model: DJI 2170
OTHER
Supported DJI Gimbals: Zenmuse X3; Zenmuse X5 series; Zenmuse XT; Ronin-MX; Zenmuse Z15 series HD gimbals: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
Retractable Landing Gear:Standard
Operating Temperature: 14° to 104° F (-10° to 40° C)
CHARGER
Model:    A14-100P1A
Voltage Output: 26.3 V
Power Rating: 100 W
BATTERY (OPTIONAL)
Model: TB48S
Capacity: 5700 mAh
Voltage: 22.8 V
Type: LiPo 6S
Energy: 129.96 Wh
Net Weight:    680 g
Operating Temperature: 14° to 104° F (-10° to 40° C)
Storage Temperature:
Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charge Temperature:    41° to 104° F (5° to 40° C)
Max Charging Power: 180 W
PERFORMANCE
Hovering Accuracy (P-Mode, with GPS):    Vertical: ±0.5 m, Horizontal: ±1.5 m
Max Angular Velocity:    Pitch: 300°/s, Yaw: 150°/s
Max Pitch Angle:    25°
Max Speed of Ascent:    5 m/s
Max Speed of Descent: 3 m/s
Max Wind Resistance:    8 m/s
Max Flight Altitude above Sea Level: 2500 m
Max Speed:    18 m/s (No wind)
Hovering Time (with six TB47S batteries)*:    No payload: 35 min, 6 kg payload: 16 min
Hovering Time (with six TB48S batteries)*:    No payload: 40 min, 5.5 kg payload: 18 min
* The hovering time is based on flying at 10 m above sea level in a no-wind environment and landing with 10% battery level. FLIGHT CONTROL SYSTEM
Model:A3
REMOTE CONTROLLER
Operating Frequency:
920.6 MHz to 928 MHz (Japan) 5.725 GHz to 5.825 GHz 2.400 GHz to 2.483 GHz
Max Transmission Distance (unobstructed, free of interference):
FCC Compliant: 3.1 miles (5 km)
CE Compliant: 2.1 miles (3.5 km)
EIRP:
10 dBm @ 900 M 13 dBm @ 5.8 G 20 dBm @ 2.4 G
Video Output Port: HDMI, SDI, USB
Dual Users Capability:    Master-and-Slave control
Mobile Device Holder:    Supports smartphones and tablets
Output Power: 9 W
Operating Temperature:14° to 104° F (-10° to 40° C)
Storage Temperature:
Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charge Temperature: 32° to 104° F (0° to 40° C)
Built-in Battery: 6000 mAh, 2S LiPo
Max Tablet Width: 170 mm
BATTERY (STANDARD)
Model: TB47S
Capacity: 4500 mAh
Voltage: 22.2 V
Type: LiPo 6S
Energy: 99.9 Wh
Net Weight:    595 g
Operating Temperature: 14° to 104° F (-10° to 40° C)
Storage Temperature:
Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charge Temperature:41° to 104° F (5° to 40° C)
Max Charging Power 180 W
