Tipe IMO Disetujui Kelas-A AIS untuk Kapal SOLAS
Persyaratan pengangkutan SOLAS mengamanatkan Sistem Identfikasi Otomatis Kelas-A (AIS) untuk dipasang di atas semua kapal, pada pelayaran internasional, 300 GT dan lebih tinggi; semua kapal barang, baik internasional maupun domestik, 500 GT ke atas; dan semua kapal penumpang, internasional atau domestik, berapa pun ukurannya. Simrad V5035 adalah solusi paket lengakp dengan persetujuan tipe IMO untuk memenuhi persyaratan AIS di atas kapal SOLAS.
Keamanan dan Kesadaran
AMenambahkan AIS ke navigasi untuk pengenalan 'kapal ke kapal' atau 'kapal ke pantai' secara spontan sangat meningkatkan keselamatan di laut dan memberikan tingkat informasi waktu nyata .
Standalone Operation

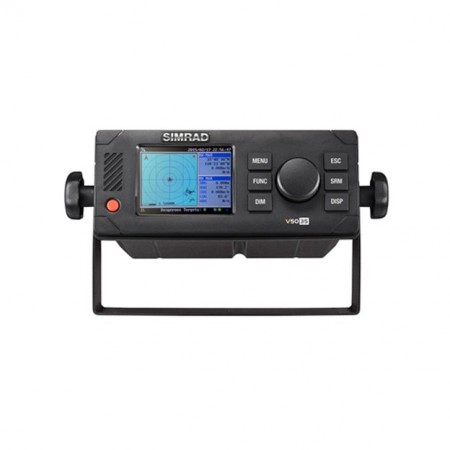

The Simrad V5035 is a compact bracket or panel-mount unit with integrated 3.5-inch colour LCD screen, multifunction rotary dial and six-button keypad. The V5035 can be configured and operated without any external display or controller, and provides AIS information to the operator in basic-coastline, radar-style, alphanumeric (textual list of contacts), and satellite display modes.
Complete AIS Solution with Comprehensive Connectivity
The V5035 ships with a junction box providing three bi-directional NMEA 0183® ports and NMEA 2000® bus for connection to multiple external sensors (e.g. heading, gyroscope), and sharing of AIS data for display by navigation systems such as the Simrad GN70, MX610, or MX612, and ECS/ECDIS including the Simrad E5000 series. The V5035 also includes a complete pilot plug assembly for connection to a Personal Pilot Unit (PPU).
Key Features
- IMO type approved Class-A AIS transponder
- Integrated 3.5-inch colour LCD
- Rotary knob and keypad for easy operation
- Basic-coastline, radar, alphanumeric (text), and satellite display modes
- Includes NMEA 0183®/2000® junction box, GPS antenna, pilot plug assembly, cables and mounting hardware
- Multiple sensor input ports and bi-directional data ports
- Connects to Simrad GN70/MX610/MX612 navigation systems and E5000-series ECDIS
