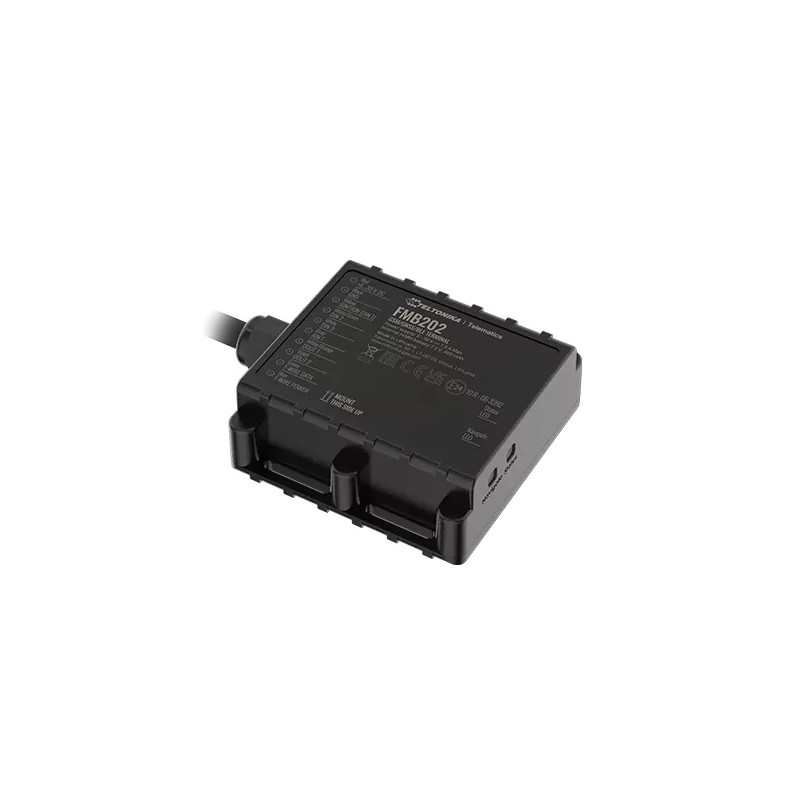

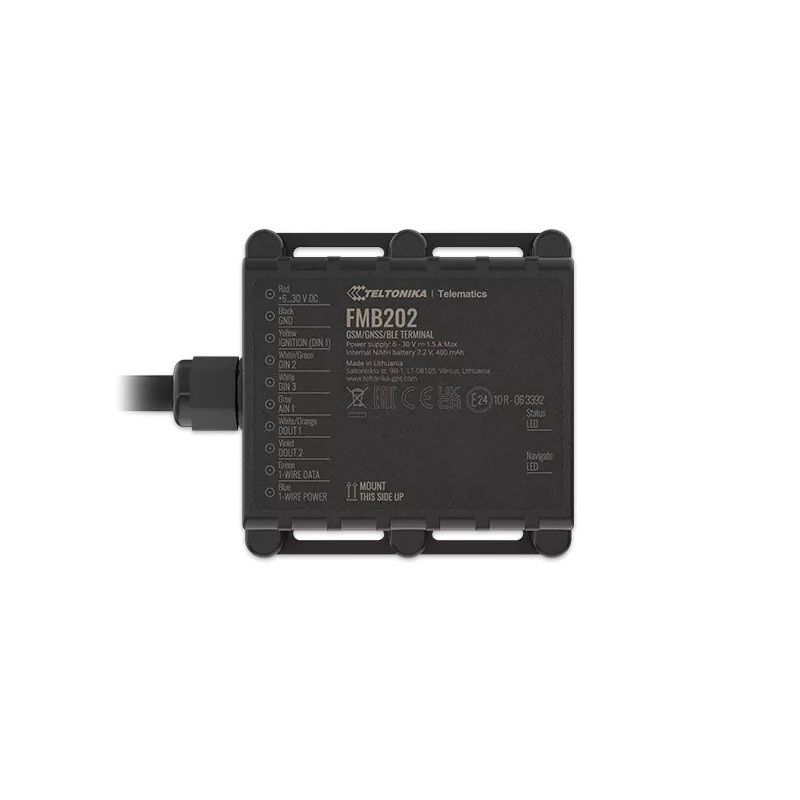

GPS TRACKER TELTONIKA FMB202
Teltonika FMB202 adalah pelacak tahan air (IP67) KHUSUS dengan konektivitas Bluetooth, antena GNSS dan GSM gain tinggi internal, dan baterai cadangan berkapasitas tinggi yang terintegrasi. Perangkat dirancang untuk bekerja lebih lama tanpa catu daya. FMB202 dengan baterai NiMH dapat bekerja hingga 2 hari dalam mode hemat daya. FMB202 sangat cocok untuk pertanian, pengiriman, transportasi berpendingin, pelacakan trailer, layanan keamanan & darurat, dan bahkan banyak lagi. Catu daya 6-30V membuat FMB202 cocok untuk sepeda motor dan transportasi air.
MODULE | |
| Name | Teltonika TM2500 |
| Technology | GSM/GPRS/GPS/BLUETOOTH |
GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 2.5m CEP |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
CELLULAR | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
POWER | |
| Input voltage range | 6 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 400 mAh Ni-MH battery (2.88 Wh) |
| Power consumption | At 12V < 1,9 mA (Ultra Sleep) At 12V < 3,7 mA (Deep Sleep) At 12V < 4 mA (Online Sleep) At 12V < 11,6 mA (GPS Sleep) At 12V < 28,3 mA (nominal) |
BLUETOOTH | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
INTERFACE | |
| Digital Inputs | 3 |
| Digital Outputs | 2 |
| Analog Inputs | 1 |
| 1WIRE DATA | 1 |
| 1WIRE POWER | 1 |
| GNSS antenna | Internal High Gain |
| Cellular antenna | Internal GSM High Gain |
| USB | Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Dual-sim (1x Micro-SIM card; 1x eSIM) |
| Memory | 128MB internal flash memory |
PHYSICAL SPECIFICATION | |
| Dimensions | 72,5 x 73 x 27,3 mm (L x W x H) |
| Weight | 205 g |
OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP67 |
| Battery storage temperature | -20 °C to +45°C |
FEATURES | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
