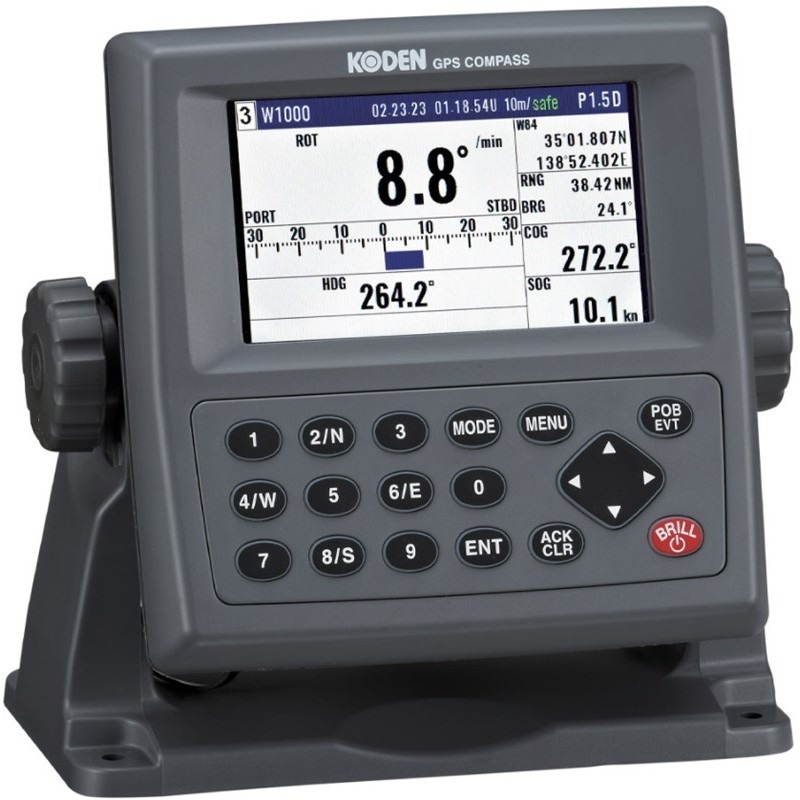

KODEN KGC-300 GPS Compass

Designed for safety

KGC-300 is a IMO approved GPS and can be used as a main compass on vessels up to 500 GT and as a backup compass for boats over 500 GT. User-friendly 4.3 "color display with several different views of course, speed, position etc. KGC-300 has up to 5 NMEA outputs with optional telegram and baud rate. With a start time of about 50 seconds (cold start) the compass sends out course and position to connected equipment very fast.

The KGC-300 also has the ability to send out the Furuno AD-10 signal, and can be used to stabilize older Furuno equipment that does not have a NMEA input. In addition, it can send out PFEC (Furuno's own pitch and roll telegram) which enables the compass to stabilize Furuno sonar.

Kirim ke teman
Kirim ke teman

KODEN KGC-300 GPS Compass
Designed for safety
KGC-300 is a IMO approved GPS and can be used as a main compass on vessels up to 500 GT and as a backup compass for boats over 500 GT. User-friendly 4.3 "color display with several different views of course, speed, position etc. KGC-300 has up to 5 NMEA outputs with optional telegram and baud rate. With a start time of about 50 seconds (cold start) the compass sends out course and position to connected equipment very fast.
The KGC-300 also has the ability to send out the Furuno AD-10 signal, and can be used to stabilize older Furuno equipment that does not have a NMEA input. In addition, it can send out PFEC (Furuno's own pitch and roll telegram) which enables the compass to stabilize Furuno sonar.
Penerima: :
Nama teman Anda ^* :
Alamat email teman Anda ^* :
^* Harus diisi
atau Batal
Cetak

Informasi
Review

Features

IMO certified GPS Compass (THD) and GPS Navigator

Highly accurate heading, position, and speed data

Get the information you need quickly and accurately for marine activities.

Stable and fast tracking capability

Esthetically pleasing 4.3-inch high resolution Color LCD

4.3-inch Color LCD Display provides high visibility even under bright sunlight.

5 heading data output ports

SBAS (WAAS / EGNOS) enabled

Display

KGC-300

PDF Brochure

Screen Image

Heading graph display1

ROT display

Nav data display2

Main Specifications

Receiving frequency		1575.42 MHz ± 1MHz
Receiving channel		Parallel 16-channel
Sensitivity		Better than –130 dBm
Accuracy	Position	GPS: 10m (2drms, SA: OFF, PDOP: 3 or less) DGPS: 3m (2drms, SA: OFF, PDOP: 3 or less)
	Heading	0.5° rms
	Velocity	1 m / sec (rms, SA: OFF, PDOP: 3 or less)
