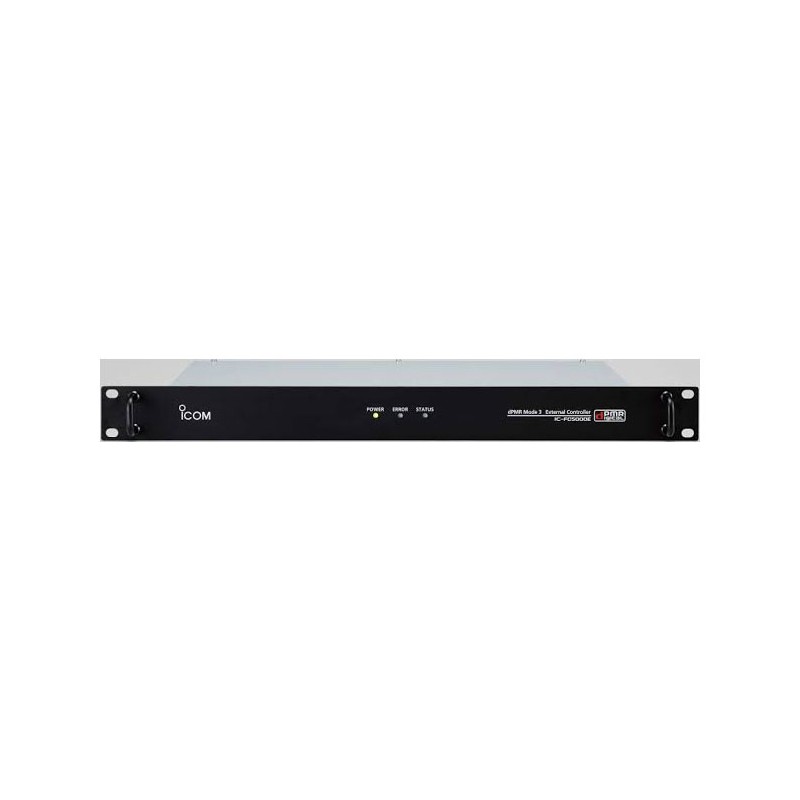

IC-FC5000E | |
---|---|
Operating temperature range | 0˚C to +40˚C |
Power supply voltage | 12V DC |
Current drain (approximate) | 600mA |
Dimensions (W×H×D) | 483 × 44 × 219 mm (1U height) |
Weight | 2.25 kg |
LAN | RJ-45 connector × 4 (100BASE-TX) |
WAN | RJ-45 connector × 1 (100BASE-TX) |
LED | Power, Error, Status |
Conformity Standards | ETSI TS 102 658 |
Compatible Models
VHF (136—174MHz) | UHF (400—470MHz) | |
---|---|---|
Transceivers | IC-F3400DPT/DPS/DP IC-F3262DT/DS IC-F3162DT/DS IC-F5400DP/DPS IC-F5062D IC-F5061D | IC-F4400DPT/DPS/DP IC-F4262DT/DS IC-F4162DT/DS IC-F6400DP/DPS IC-F6062D IC-F6061D |
dPMR Mode 3 compatible transceivers (versions) are required. | ||
Repeaters | IC-FR5100/FR5100H IC-FR5000 IC-FR5200HUR-FR5100 UR-FR5000 | IC-FR6100/FR6100H IC-FR6000 IC-FR6200HUR-FR6100 UR-FR6000 |
dPMR digital repeaters (versions) are required. | ||
Ethernet Board | UC-FR5000SE is required for each repeater. * UC-FR5000SE is already installed to IC-FR5200H or IC-FR6200H. | |
VPN Router | SR-VPN1 is the best match VPN router for the IC-FC5000E trunking system. | |
SYSTEM MANAGER | The RS-MGR2 monitors the hardware status and network connectivity/statistics and collects the communication and traffic logs. |
