Baru Trimble, Inc. TDC600 Handheld

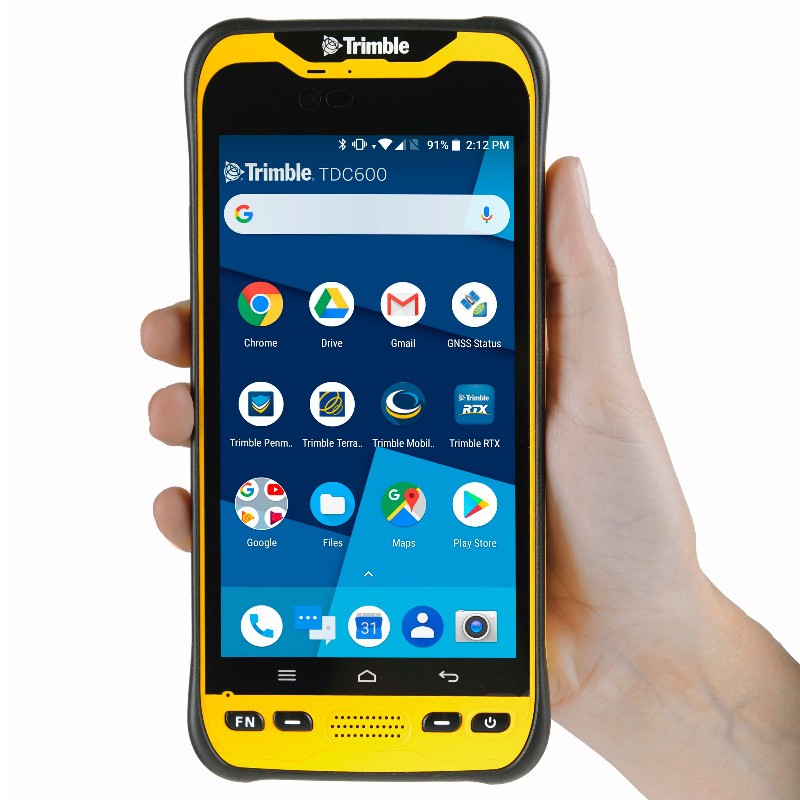

Trimble TDC600 Handheld Data Collector

Call for price

Tambahkan ke Wishlist

whatsapp

Baru

Handheld Trimble® TDC600 adalah smartphone ramping dengan penerima GNSS profesional built-in yang dirancang untuk mengumpulkan, menyimpan, dan berbagi informasi spasial yang akurat dalam kondisi lapangan apa pun.

Handheld Trimble TDC600 adalah smartphone all-in-one ultra-kasar dan pengumpul data GNSS untuk aplikasi GIS. Menampilkan sistem operasi Android 8.0, layar cerah yang dapat dibaca di bawah sinar matahari, dan baterai sepanjang hari, TDC600 adalah solusi terintegrasi penuh.

Specifications

General

  • Year of introduction              2019
  • Main design elements            hardware
  • Total Weight [kg]                   0.38
  • Width [m]                               0.093
  • Height [m]                               0.196
  • Depth [m]                               0.017
  • Resolution: horizontal pixels 1920
  • Resolution: vertical pixels     1080
  • Display: width [m]                  0.075
  • Display: height [m]                 0.133
  • Touchscreen                           Y

GNSS Receiver

  • GNSS Systems Supported      GPS L1 C/A, GLONASS, BeiDou, Galileo, QZSS
  • Number of Channels              72
  • Integrated SBAS                     Y
  • Update Rate [Hz]                    4
  • Time to first fix after cold start [s]    30
  • Multipath Mitigation             N
  • Compatible external GNSS receiversTrimble Catalyst, Trimble R2, Trimble R1
  • Stand alone positional accuracy [m] 1.5
  • Compatible GNSS correction signals DGPS, SBAS



Computer

  • Processor                                Qualcomm Snapdragon 626
  • RAM [MB]                               4000
  • Hard Disk [MB]                       64000
  • Types of Replaceable Memory          MicroSD (up to 128 GB)
  • Audio: speaker                       Y
  • Range measurement              N
  • Operating System                  Android 10
  • Built-in Camera: megapixels 13
  • Hard Disk                                Flash
  • Audio: microphone                Y

Connectivity

  • User Interfaces                       3 programmable keys; standard Android touch panel keys; power; volume up/down
  • Wireless Data Transfer          Wi-Fi (802.11 a/b/g/n/ac)
  • Bluetooth                               Y
  • Ports                                       USB 3.0 Type-C
  • WiFi                                         Y

More information

  • Main applications                  GIS, Utilities, Government, Water Management, Forestry, Asset Management, and others
  • Distinguishable features        Sunlighyt readable display; GNSS receiver; 4G LTE support; Android 8.0; Google Mobile Services certified; ultra rugged design



Operation Characteristics

  • Integrated sensors                             Compass
  • Operating temperature: min. [°C]    -20
  • Operating temperature: max. [°C]    55
  • Water and dust proof [IP]                 IP67
  • Humidity resistance                           95% RH non-condensing
  • Shock proof                                        1.2 m drop, MIL-STD-810G
  • Operation time per battery [hr]        15
  • Battery Field Replaceable                  Y
  • Pole mount available                                     Y
