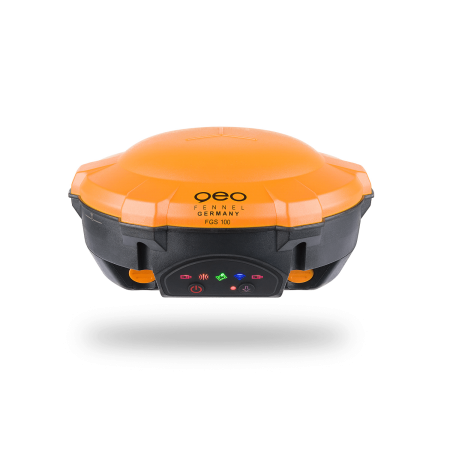

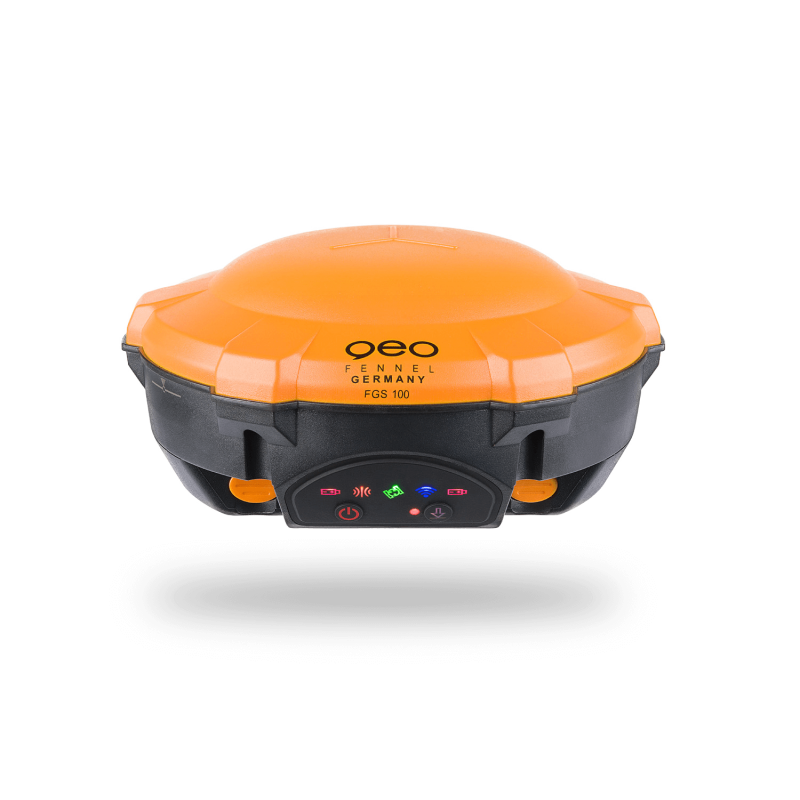

FGS 100 geo-FENNEL GNSS-System

Dust / water protection:

IP 67

Positioning specifications SBAS:

1 m 3D RMS

Humidity:

100 %

Power supply:

5-27 V DC, 3.1 W (at full use), 2 x 2,000 mAh Li-Ion

BEIDOU:

B1, B2, B3

Hot start:

< 15 s

Initialisation reliability:

> 99,9 %

Tilt sensor:

up to 30°

Channels:

572

Signal reacquisition:

< 2 s

Positioning specifications Stand-alone:

1,5 m RMS

Operation temperature:

-40 °C to +65 °C

5 LED indicating lights:

Indicating power, satellite tracking, GPRS status and differential data

ASCII:

NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, AVR; PTNL, GGK

Shock and protection:

Designed to survive a 2 m drop onto concrete

Operating time:

bis zu 9 h

Positioning specifications DGPS:

< 0,4 m RMS

Bands:

800 / 900 / 1.800 / 2.100 / 2.600 MHz (4G), 900 / 1.800 MHz (2G), 900 / 2.100 MHz (3G)

Storage temperature:

-40 °C to +85 °C

Weight:

0,95 kg (with battery)

QZSS:

reserved

Positioning specifications static:

horizontal 2,5 mm + 0,5 ppm RMS, vertical 5,0 mm + 0,5 ppm RMS

SBAS:

WAAS, EGNOS, MSAS, GAGAN

Bluetooth:

4.0, for Windows and Android

GPS:

L1, L2, L2C, L5

GLONASS:

L1/L2

Cold start:

< 50 s

Warm start:

< 30 s

Initialisation time typically:

< 10 s

Positioning specifications real time kinematic:

horizontal 8 mm + 1 ppm RMS, vertical 15 mm + 1 ppm RMS

Extended size:

15,8 x 7,5 cm

Positioning specifications:

horizontal 0,20 m + 1 ppm RMS, vertical 0,40 m + 1 ppm RMS

Serial port:

1 serial port (7-pin LEMO), baud rates up to 921,600 bps

Radio modem (optional):

Tx/Rx with full frequency range from 410 to 4702 MHz 4G modem

Transmit power:

0,5 W

Positioning update rate:

1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz

Correction data I/O:

RTCM 2.x, 3.x, CMR & CMR+ (GPS only)

Working range:

1 - 5 kmam7yamaj
