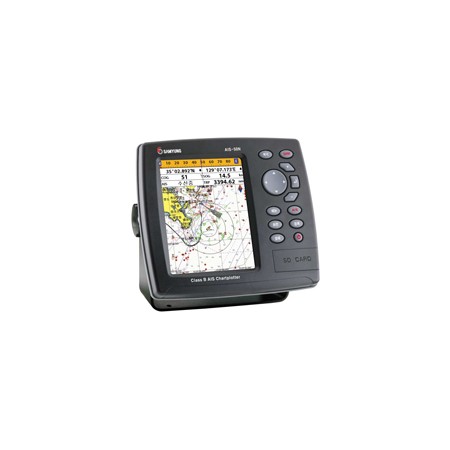

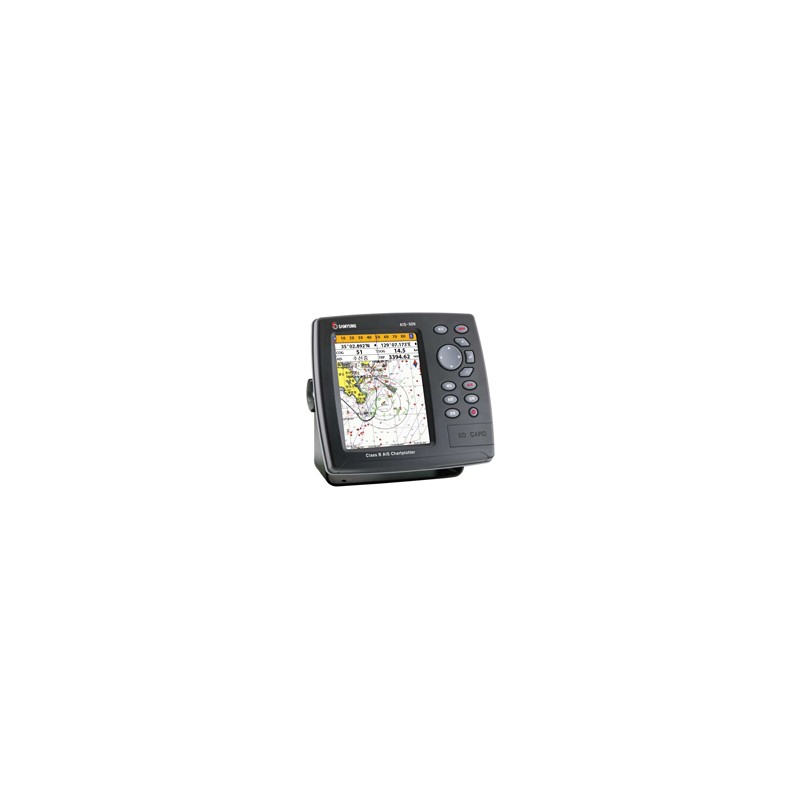

Class B AIS Chartplotter AIS-50N

Baru

Class B AIS Chartplotter
AIS-50N DARI BRAND SAMYUNG

Features

Preloaded digital worldwide cartography
NAVIONICS®GOLD SD card
Real time display of navigation information
Updated electronic chart available
Built-in map with range rings and 12 zoom ranges from 0.01 to 32 nm
Cursor ID mode allows easy readout of target vessel



Specifications

Size : 164 mm(H) x 183 mm(W) x 91 mm(D)

Display :  5.6 diagonal, TFT color LED, 480 x 640 pixels

Supply voltage : 10 to 34 V DC

Supply current : 13.8 V

Operating tem : -10° to 50°C

Alarms : Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate,

               low battery, low fuel(optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels.

Chart card : NAVIONICS® GOLD

User card : SD Card

Waypoints : Up to 5000, with default or userdefined alphanumeric names up to eight characters.

Routes : 100 Routes, with up to 100 points each

Tracks : By time or distance, 10 track of 5000 points

Chart datums : 216 Chart datums (see next page) One user-defined map shift.

Chart scale : 0.2 to 500 nm for chart (chart dependent) down to 0.01 nm in plotter mode.

NMEA : NMEA 0183 4800, 9600, 38400 baud NMEA 2000
